Replace Data within a SOLIDWORKS Electrical Project

Within SOLIDWORKS Electrical Schematics, you can replace data across your entire project.

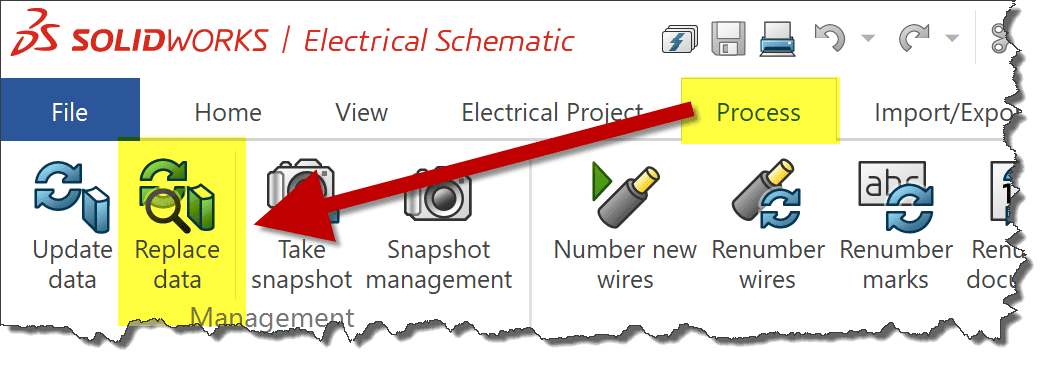

This is accomplished using the Replace data command.

Graphical user interface Description automatically generated

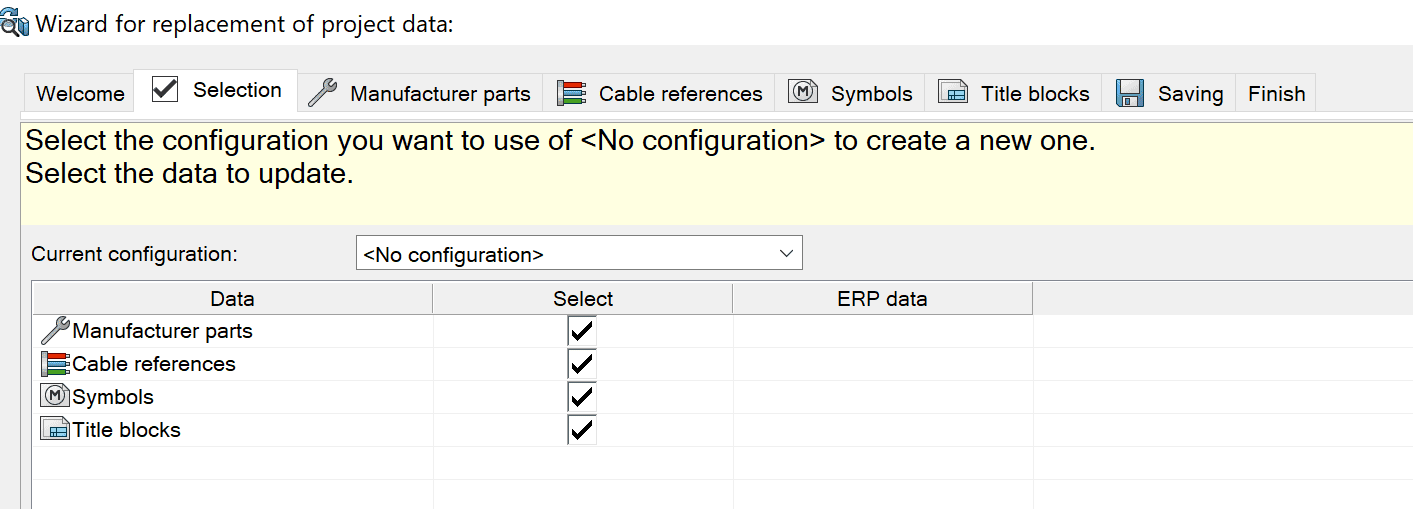

The Replace data command allows the replacement of manufacturers, cable parts, symbols, as well as title blocks across your entire project. This functionality replaces all instances the replacement reflects.

Graphical user interface, application Description automatically generated

For example, If you have multiple components with a particular manufacturer part and those components are represented in multiple places within your project, and you want to replace the manufacturer with another for all components, the Replace Data functionality will replace that manufacturer part information for all instances within your project.

When replacing data there are three state types the data can be in

    No change – Indicates the data has no replacement selected

Incompatible – the part selected for replacement does not match the requirements of the associated component symbol. This can be a miss-match of circuit types, the number of terminals, or the number of circuits.

   Compatible – the replacement meets all replacement requirements.



If you double-click on a State cell, this will bring up a detailed report for that component.

Graphical user interface, application, table Description automatically generated

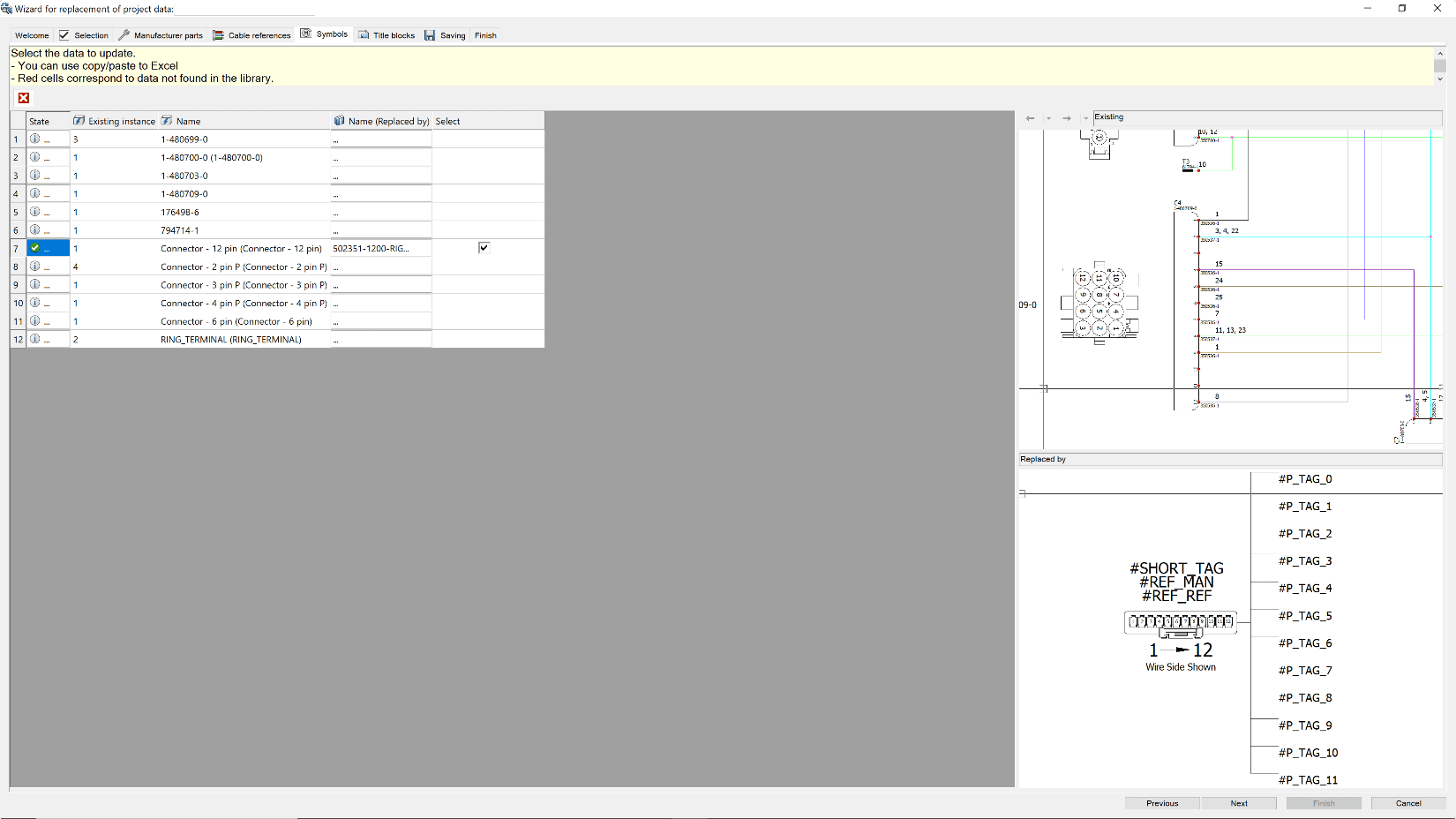

Symbols and title blocks include a preview of the existing and replacement selection.

Graphical user interface, application, table Description automatically generated

You do have the ability to save a configuration file of the settings applied. This is helpful if a component is discontinued. This type of change may need to be implemented across multiple projects. Selecting the saved configuration will automatically apply the part change.

Graphical user interface, application Description automatically generated

Ken Reinert
Sr. Application Engineer, Specialist Electrical
