SOLIDWORKS 2017: Installation Guide Part 6 – PCB
Installation Guide Part 6 – PCB
SOLIDWORKS PCB has 3 parts.
SOLIDWORKS PCB is the Application used to design PCBs.
SOLIDWORKS PCB Services is the ‘bridge’ that connects PCB to SOLIDWORKS and allows users to be set up.
SOLIDWORKS PCB Add-in is the SOLIDWORKS Add-in that allows you to work with the data within SolidWorks. This is automatically installed in SOLIDWORKS provided you’re running 2016 SP3 or newer.

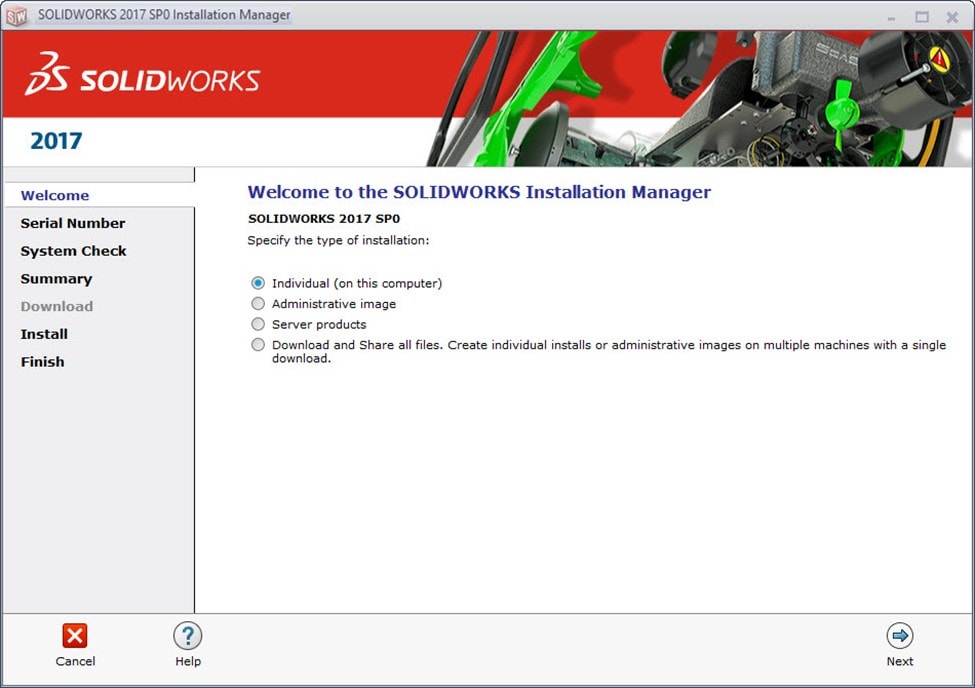

If Installing a new instance, you can choose the Individual option:

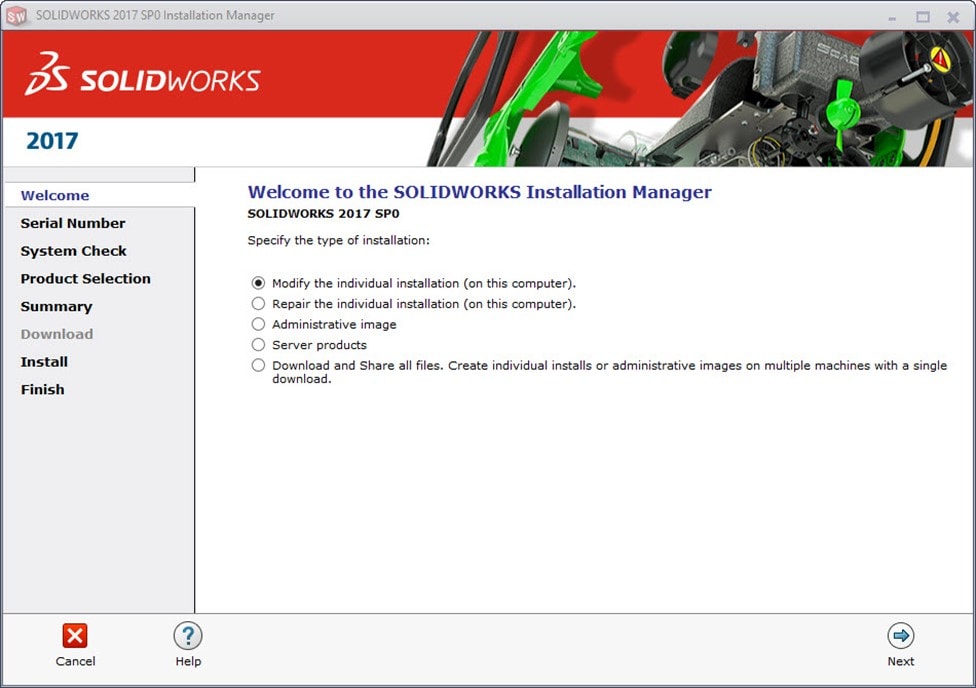

If adding SOLIDWORKS PCB to an existing installation you will choose the ‘Modify the individual installation (on this computer):’ option:

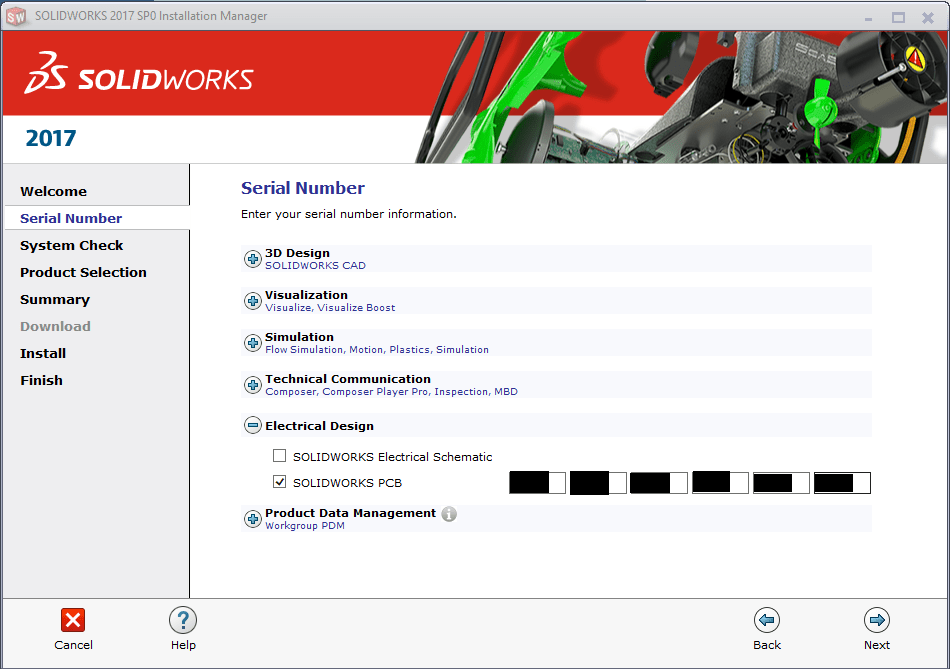

After clicking ‘Next’ you will come to the serial number screen. Enter your SOLIDWORKS PCB serial number and click ‘Next’:

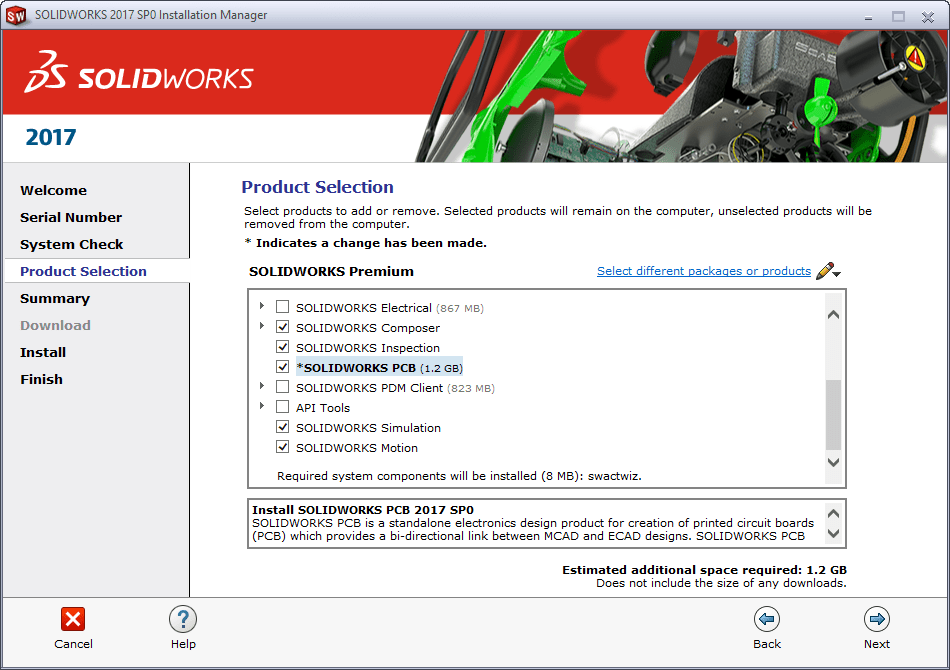

At the Product Selection you’ll want to ensure that SOLIDWORKS PCB is checked.

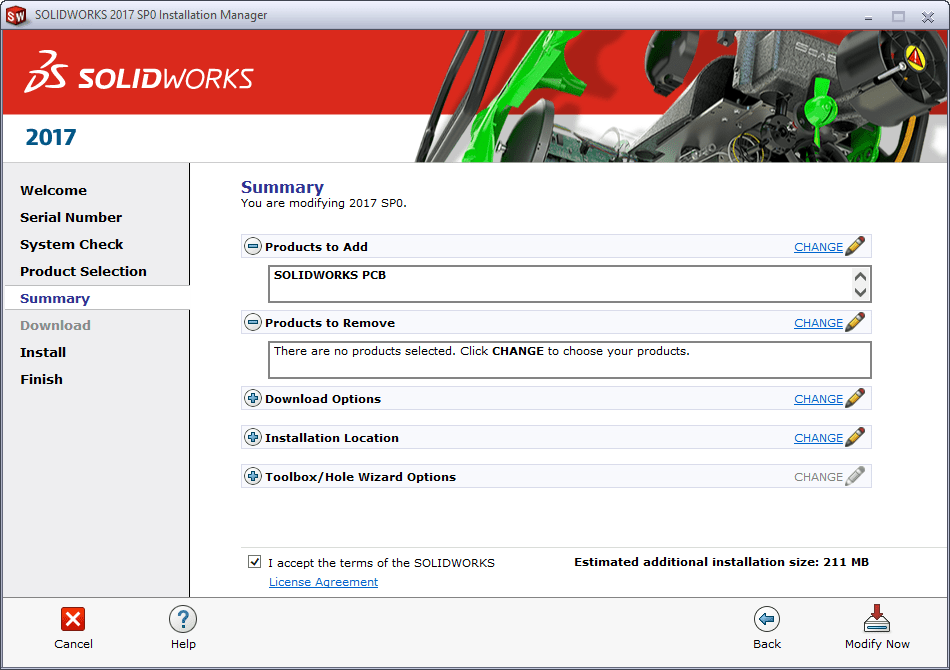

At the Summary page it should show that SOLIDWORKS PCB is selected for install. With new Installations you then select “Install Now”. When modifying an existing SOLIDWORKS Installation to add SOLIDWORKS PCB you select ‘Modify Now’:

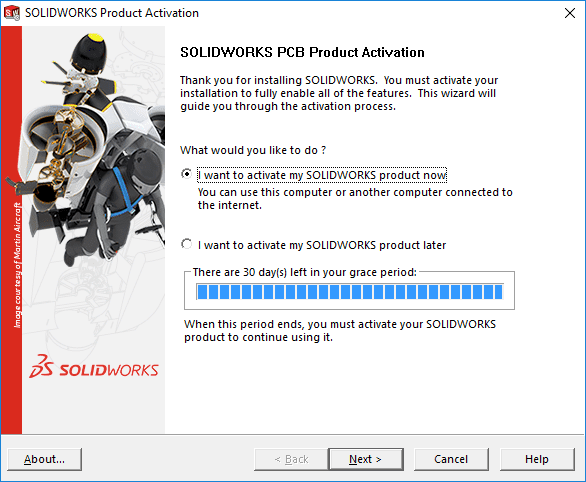

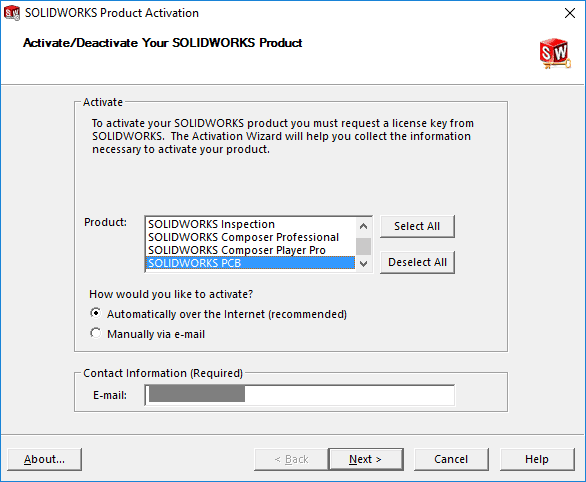

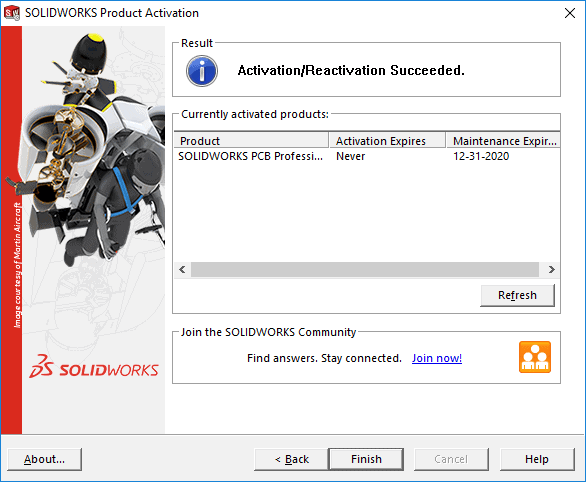

After Installation, you will be prompted to Activate. Go through the Activation Process.
SOLIDWORKS PCB Services

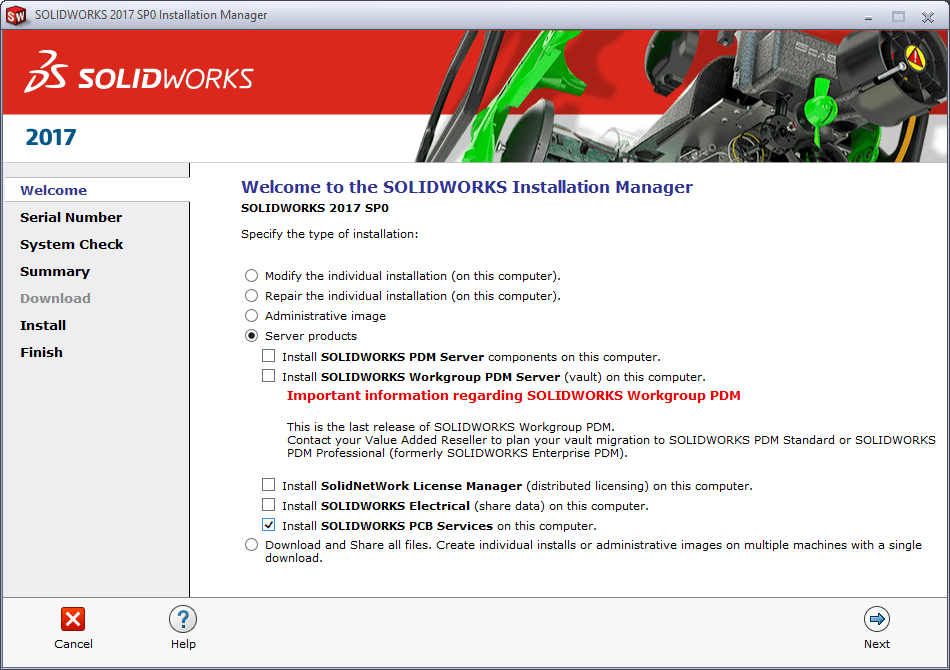

To install SOLIDWORKS PCB Services, you will run the Installation Manager and go to ‘Server Products’ and select ‘Install SOLIDWORKS PCB Services on this computer.’ and click next.

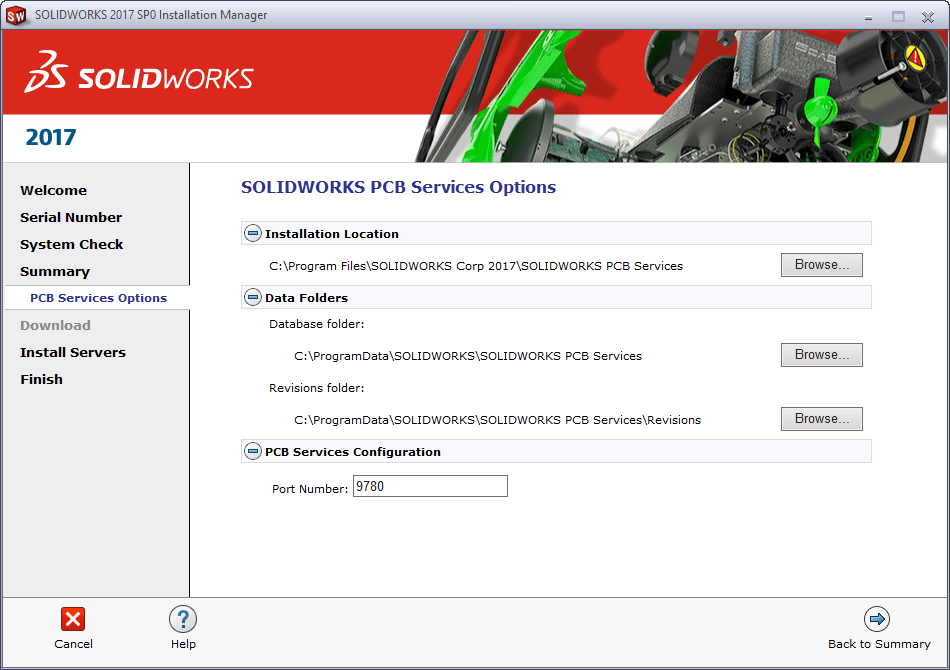

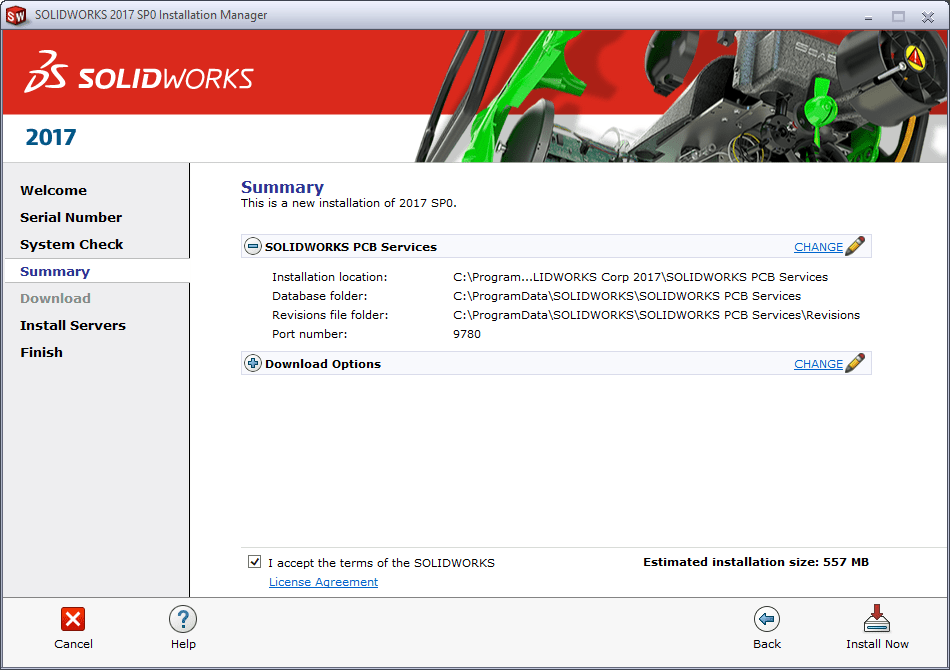

At the Summary page you can click the ‘CHANGE’ link to edit your Installation locations and your Port Number.
There are folders for the ‘Installation Location’ where the software gets installed and runs from. There are also ‘Data Folders’ for where data gets saved to and stored. The ‘Port number’ is for communications between the PCB software and SOLIDWORKS.

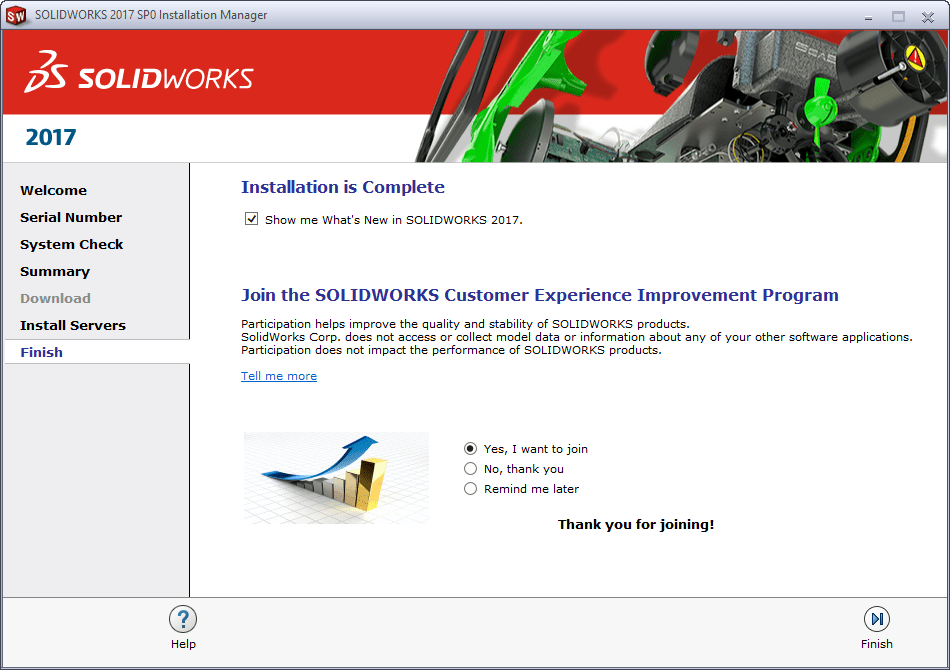

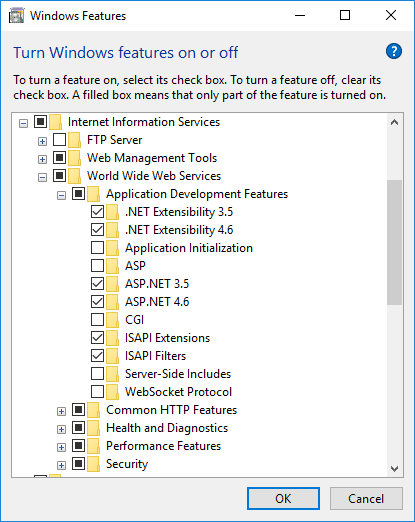

NOTE: PCB Services requires Microsoft Internet Information Services (IIS). Official documentation requires that .NET Extensibility and ASP .NET of the latest version to be installed. The PCB Services installation failed for me until I had all versions selected:
I also disabled my Windows Firewall and my Anti-Virus completely to ensure the install would complete.
