How to Import Symbols into SOLIDWORKS Electrical Schematic

SOLIDWORKS Electrical SchematicIf you’ve used SOLIDWORKS Electrical Schematic Professional or Standard then you know how easy it is to develop your electrical systems thanks to the integrated library database which houses thousands of symbols and tools that can be used throughout your design. However, it is sometimes necessary to import a symbol into the symbol library in lieu of creating a symbol from scratch or modifying an existing symbol.

In this quick tip, I’ll show you how to import symbols into SOLIDWORKS Electrical Schematic quickly and easily so you can continue your electrical design without a hitch. Let’s get started.

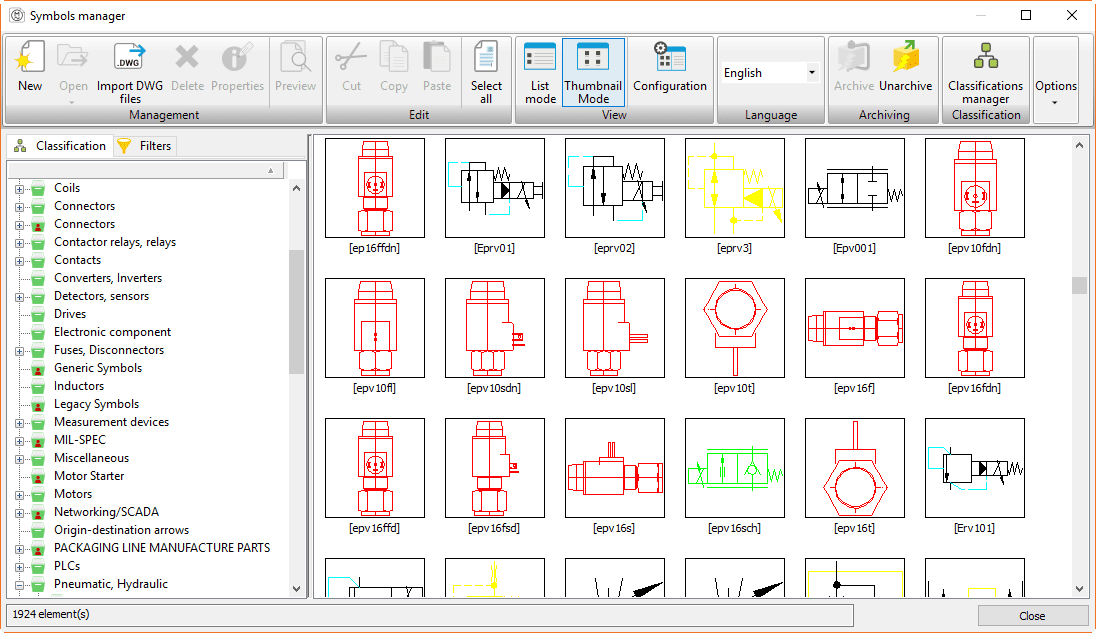

Within in the Symbols Manager, select Import DWG files. (Note: All Symbols and Title Blocks are DWG format).

solidworks electrical schematic

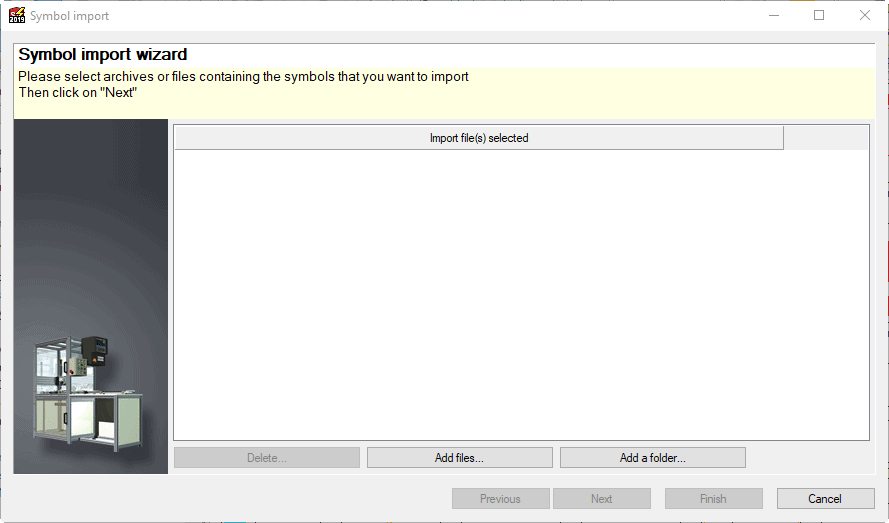

Start by selecting the individual files that are to be imported and/or what folder containing several files needs to be imported.

solidworks electrical schematic

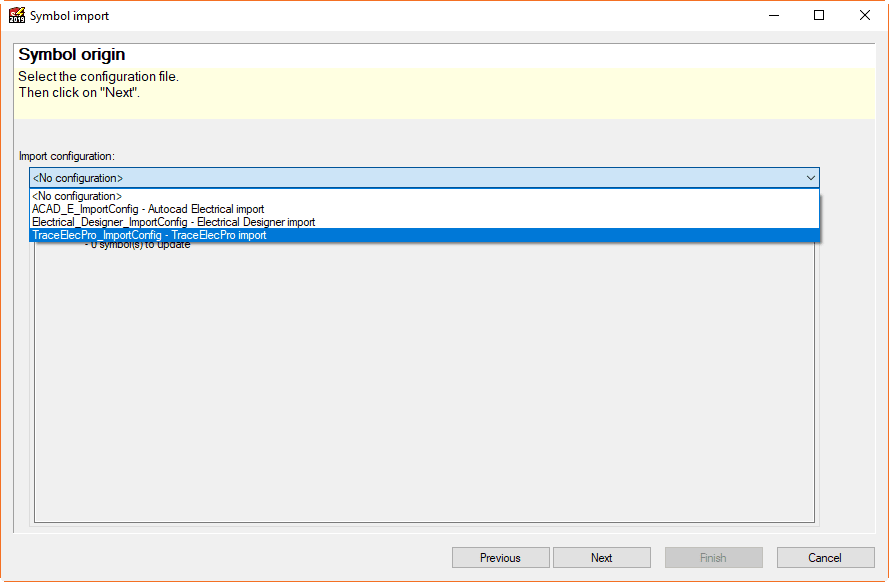

Once you’ve run through the import wizard, you can save your selection to a configure file. These configuration files can be used to import other symbols in the future to save time. In this example, I’m going to select <No configuration>.

solidworks electrical schematic

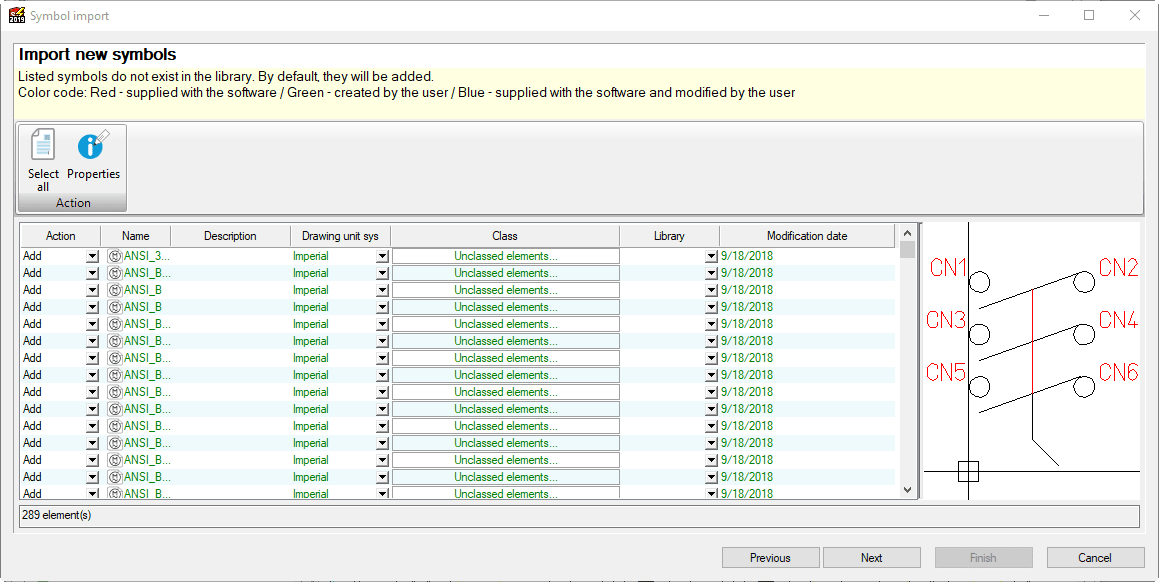

In the following window, you can add a Description, select a Class, and Library to place your symbols.

solidworks electrical schematic

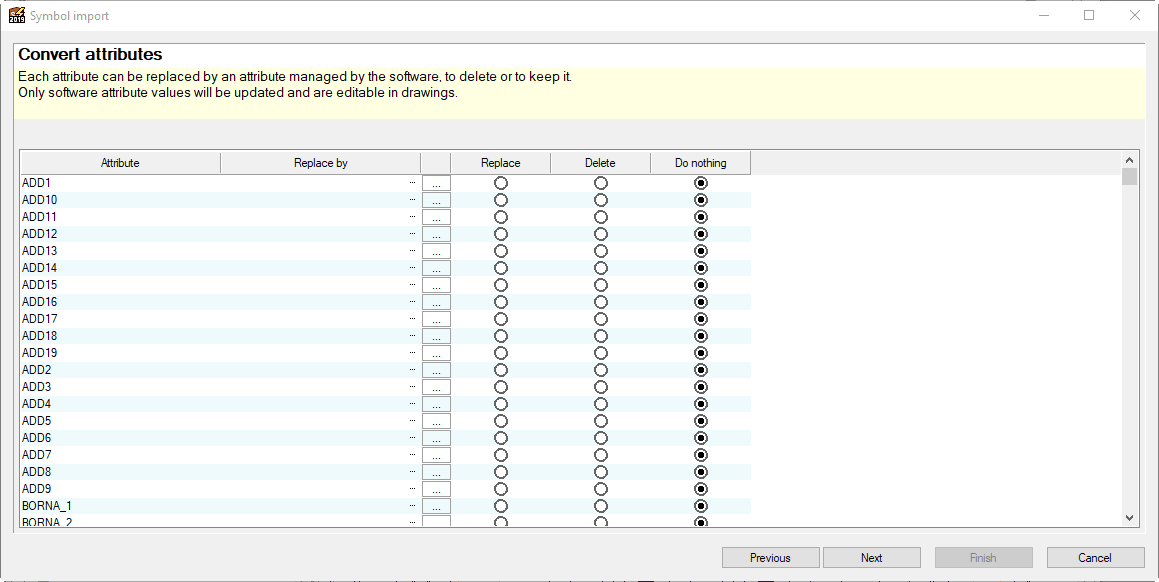

Now it’s time to determine what symbol attributes we want to delete or replace by an attribute within the existing library.

solidworks electrical schematic

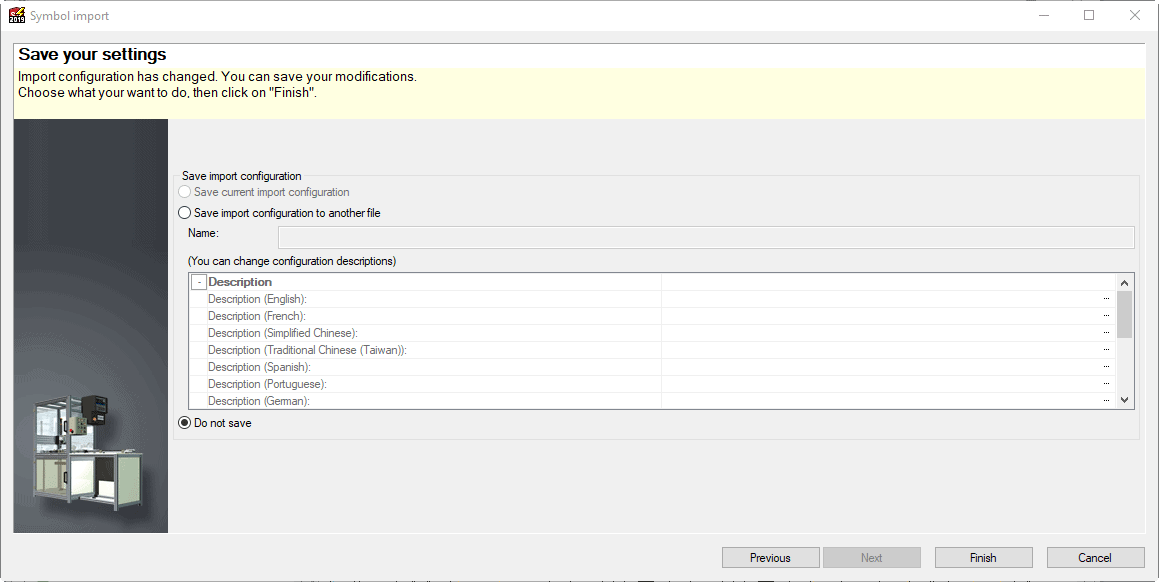

The last screen is where you can then save your selections to a configuration file. The saved configuration will save all of the mapped attribute information to reuse for next time.

solidworks electrical schematic

I hope you found this quick tip helpful on how to import symbols into SOLIDWORKS Electrical Schematic. In my next blog, I have advice on what to look out for when importing these symbols. Stay tuned!
