SIMULATION Topology study- Driving your results.

With the release of SOLIDWORKS Simulation 2018 came the addition of a new study type, the topology study. For those of you unfamiliar with Topology Optimization it is a simulation algorithm that specializes in minimizing mass of structures while still resisting loads. It often generates organic looking shapes that traditional engineering practices would not. After a few months of experimenting with it and 3D printing some great stuff with the help of STRATASYS 3D Printers, I have become experienced in driving the topology results to a form that best suits my needs. The goal of this blog is to discuss some of the options available in Topology studies and how they can influence the shape of the result.

Study Properties

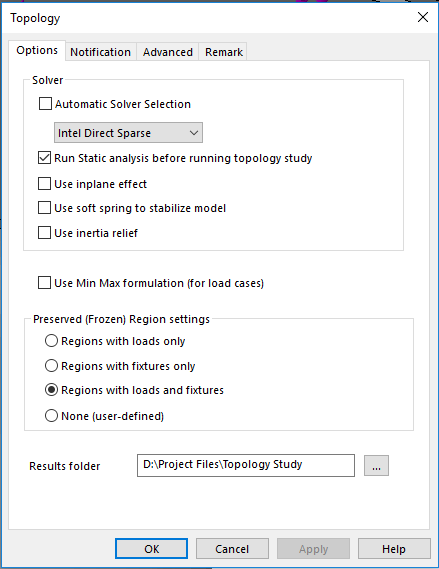

A good place to start with any analysis is the study properties. These contain options for the solver and how boundary conditions are applied. In topology analysis there are some useful tools related to preserved regions. By default, a topology study will preserve the faces that have loads or fixtures applied to them. In the study properties though, you can override this by only preserving loading faces, fixture faces, both, or neither. See below:

SOLIDWORKS Simulation Topology Study properties

There are useful in instances where the faces that the load or fixture is applied do not need to remain constant. For example:

SOLIDWORKS Simulation Topology Study properties

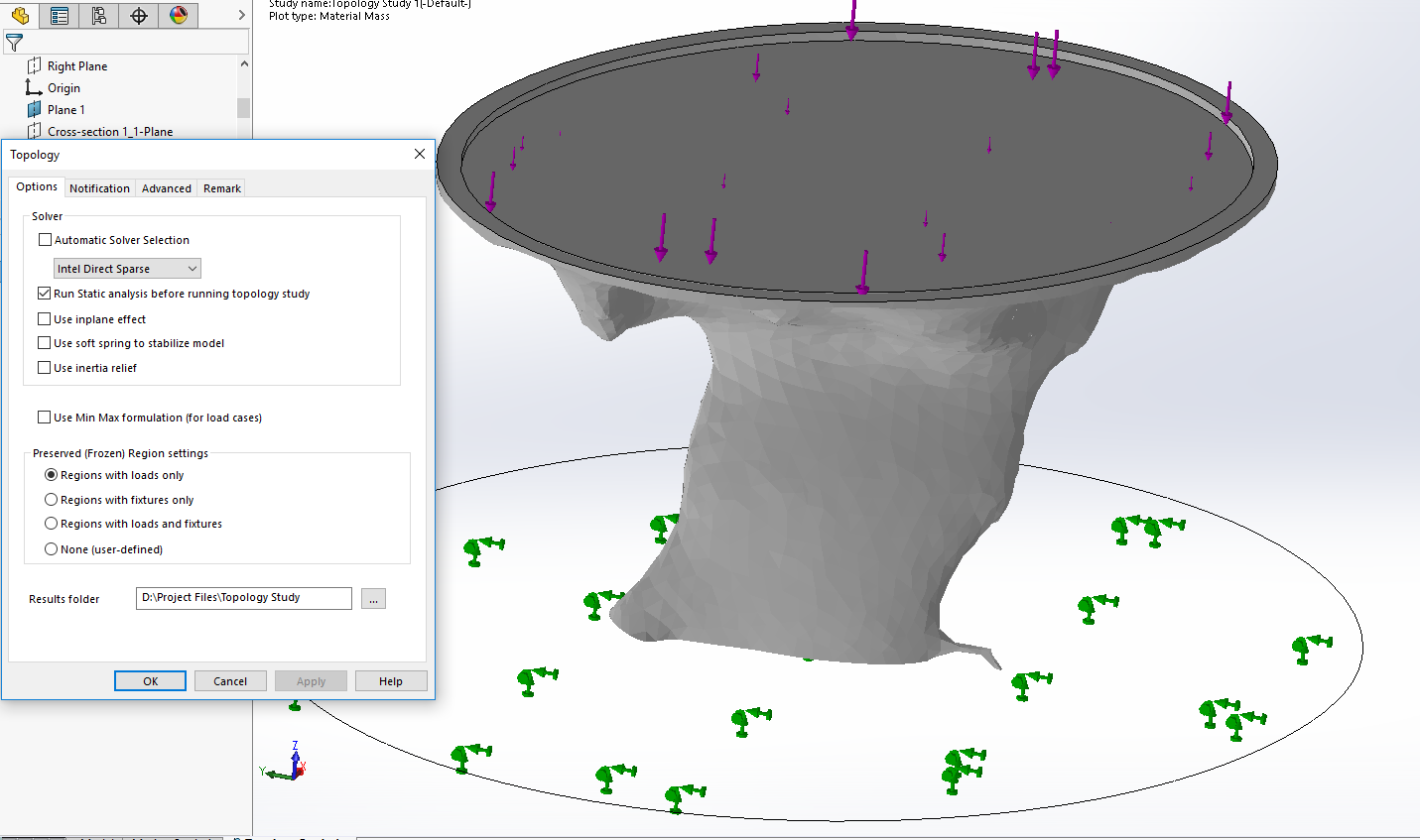

(Above: the bottom of this stand was fixed, but the study settings were such that faces with fixtures can be removed. Only the necessary amount of the bottom face was kept; just enough to resist the load.)

Manufacturing Controls

A bit more powerful than the study properties is the option to add manufacturing controls into the topology analysis.

  • Preserved Regions- As discussed above preserved regions are a great way to make sure that the topology study does not remove material from specified areas of the model. The preserved regions dialogue also allows for defining a depth to a preserved region, restricting a defined area of mesh behind the region to be spared from the removal of material.

SOLIDWORKS Simulation Topology Study manufacturing controls

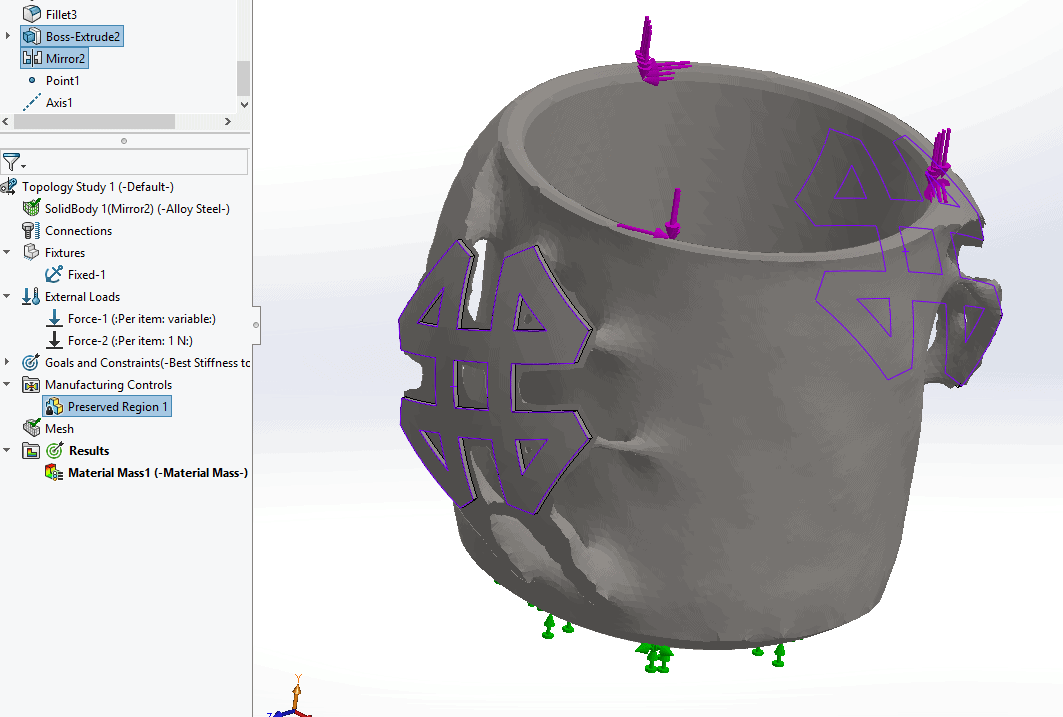

(Above: preserved region is used on the faces that look like the CATI Logo to make a cool looking pencil holder)

  • Symmetry – Adding this manufacturing control will drive the results of a topology study to remain symmetric about a plane. For parts that have symmetry this will help make sure that the resulting shape maintains symmetry about the same planes. Topology studies can apply symmetry in half, quarter or eighth symmetry.
  • De-Mold direction – This is a specialized algorithm that drives an optimized shape so that it could potentially be molded. The algorithm is designed that if an element is removed from the mesh, other elements in the direction of pull are also removed. This helps to remove overhangs and other types of geometry that cannot be molded. There are three De-mold directional options. Mid Plane (both directions) removes the elements in both directions so that the part can be removed from a mold from either side. Pull direction only removes only elements from the direction of pull. The stamping option is similar to the pull direction only in that it will only remove elements in one single direction defined by the De-mold vector.
SOLIDWORKS Simulation Topology Study symmetry direction and de-mold direction

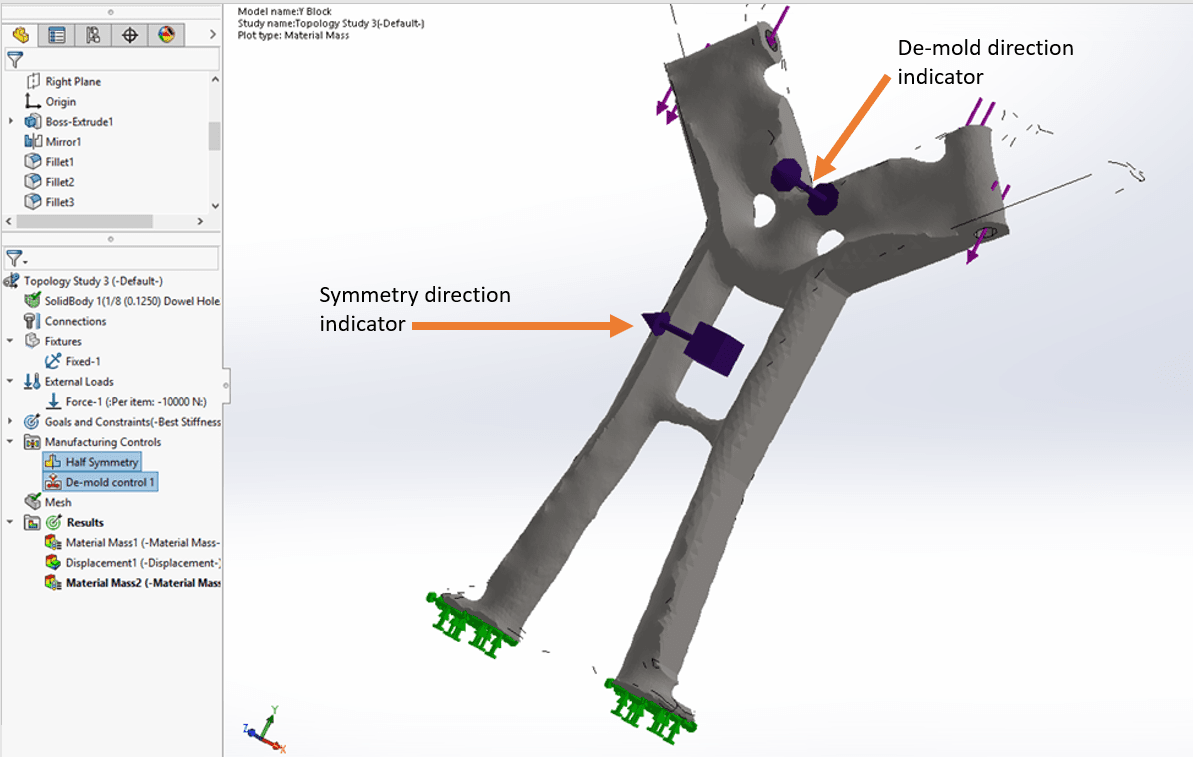

Above: Symmetry and de-mold direction were both used on this “Y” shaped bracket. Symmetry was used to keep the bracket even about the “Y” and De-Mold was used in the thickness direction of the part.

  • Thickness Control– This last manufacturing control gives further constraints to the study to make the small members generated by the study fit the size requirements. There is an option to define a minimum and maximum member thickness. I have found this useful for 3D printing applications since very small connecting members are not always printable.

, SIMULATION Topology study- Driving your results.

(Photo Credit, Dassault Systemes, SOLIDWORKS Simulation Professional Training Manual)

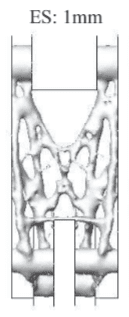

The above screenshot shows a member that has a very small mesh which can result in very thin structures in the part. Instead of simply increasing the size of the mesh, adding a thickness control could drive the results towards fewer members with a higher thickness.

Topology studies are a fantastic way to make use of SIMULATION to help drive parts to their minimum mass state; and let’s be honest, they look really cool. As the additive and other advanced manufacturing fields grow, shapes like this will become more common. With a bit of practice and imagination, topology studies in SOLIDWORKS Simulation Professional can help you become the engineer of the future.

Matt Sherak
Applications Engineer, Simulation
Computer Aided Technology, Inc
