SOLIDWORKS 2022 What’s New – Coordinate Systems


Coordinate systems have been improved in SOLIDWORKS 2022 on how you define them and select them with the Using Numeric Values to Define Coordinate Systems option & Selection for Coordinate Systems. Let’s take a look!

Using Numeric Values to Define Coordinate Systems in SOLIDWORKS 2022

First up is the Using Numeric Values to Define Coordinate Systems option. This option is available in Parts and Assemblies. Coordinate systems can be defined by entering absolute numeric values for position and orientation.

In the Coordinate System Property Manager, go to Position and select Define position with numeric values. Enter numeric values for the X, Y and Z coordinates. The values entered define the position relative to the local origin, not the global origin (0,0,0).

SOLIDWORKS 2022 Define position with numeric values

To rotate the coordinate system, go to Orientation and select Define rotation with number values and enter a value for at least 1 axis. The axes always rotate in the sequence X, Y & Z.

SOLIDWORKS 2022 Define rotation with number values

This defines Coordinate System 1 in the model Command Manager Design Tree.

, SOLIDWORKS 2022 What’s New – Coordinate Systems

Selection for Coordinate Systems

The second improvement to the SOLIDWORKS 2022 Coordinate Systems is the Selection for Coordinate Systems.

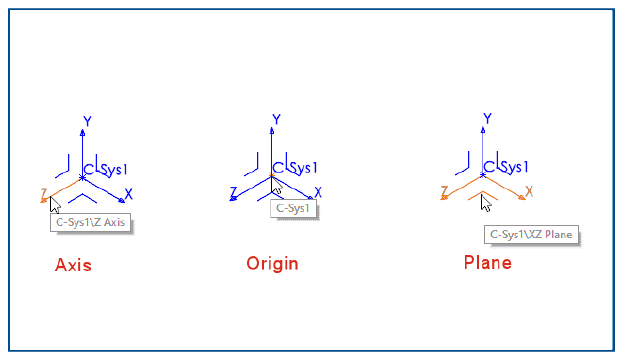

SOLIDWORKS 2022 Axis Origin Plane

All parts of a coordinate system can be referenced. This includes planes, axes and an origin, in downstream features. For example, users can sketch on the XY plane of a coordinate system or use the Z axis of a coordinate system as the axis for a revolve feature.

With a part or assembly open, click Insert > Reference Geometry > Coordinate System and create the coordinate system. Hover over a plan, axis, or the origin to highlight each entity. This new functionality is useful for action such as sketching, mating and more.

I hope this part of the What’s New series gives you a better understanding of the new features and functions of SOLIDWORKS 2022. Please check back to the CATI Blog as the CATI Application Engineers will continue to break down many of the new items in SOLIDWORKS 2022. All these articles will be stored in the category of “SOLIDWORKS What’s New.”

Judy Marlo, CSWE, CSPP
Application Engineer Manager
Computer Aided Technology
