SOLIDWORKS 2022 What’s New – Custom Properties Architecture and Properties Dialog Box

In SOLIDWORKS 2022, there have been some great enhancements to the custom properties architecture and the properties dialog box. First of all, configuration specific properties have now been separated into two tabs: Configuration Properties and Properties Summary.

Graphical user interface, text, application, email Description automatically generated

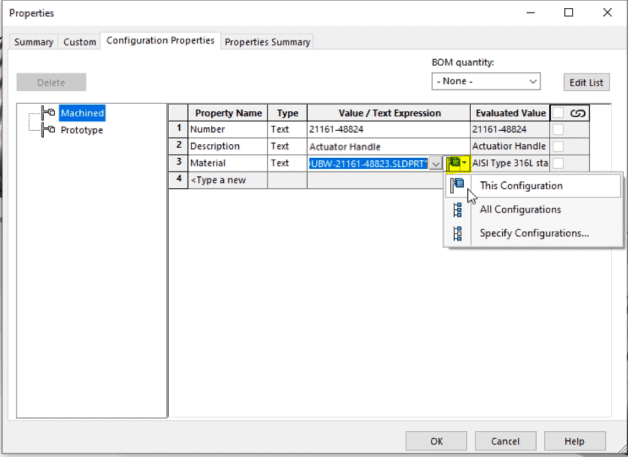

In the first tab, Configuration Properties, there are two sections. The first section on the left lists all of the configurations and derived configurations.  In the second section on the right, you are still able to enter the property information just like before. However, in SOLIDWORKS 2022, you now have the ability to choose which configuration the property is applied to using the dropdown.

Graphical user interface, text Description automatically generated

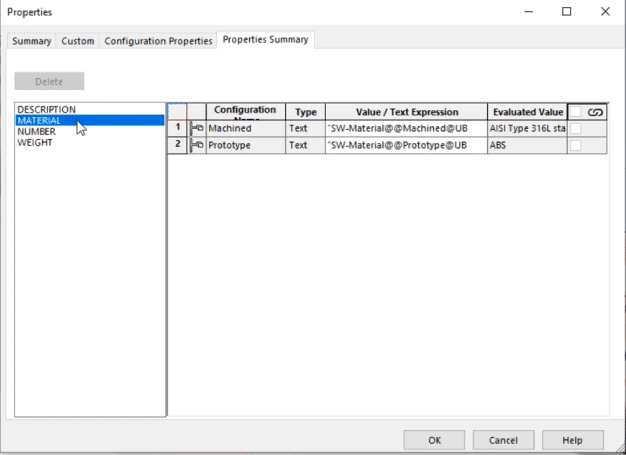

In the second tab, the Properties Summary provides a useful way to compare configurations based on a specific custom property.  For example, I can see in one list all of the materials that I applied to each configured part.

Table Description automatically generated with medium confidence

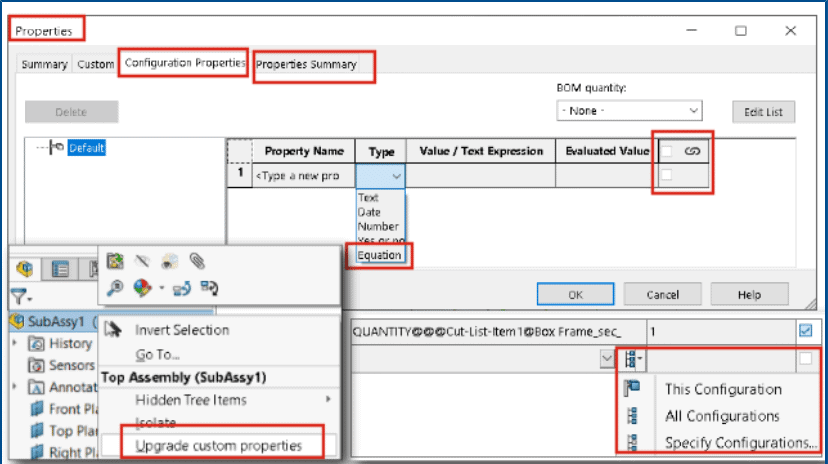

You can upgrade custom properties of files created in SOLIDWORKS 2017 or earlier. When you run Upgrade Custom Properties on legacy files, their custom properties are upgraded to the new architecture. After the upgrade, the following features are available to the legacy files:

  • Linked column in the Custom Properties dialog box
  • Configuration-specific cut list and custom properties
  • Equation in File Properties
  • Enhanced Configuration Specific Properties dialog box

Graphical user interface, text, application Description automatically generated

I hope this part of the What’s New series gives you a better understanding of the new features and functions of SOLIDWORKS 2022. Please check back to the CATI Blog as the CATI Application Engineers will continue to break down many of the new items in SOLIDWORKS 2022. All these articles will be stored in the category of “SOLIDWORKS What’s New.”

Ken LaVictor
Sr. Applications Engineer
Computer Aided Technology
