SOLIDWORKS 2022 What’s New – FLOW SIMULATION Tool and Feature Updates

Every year SOLIDWORKS brings a host of enhancements to SOLIDWORKS Flow Simulation. In this blog we will look at a few of the new tools and features in SOLIDWORKS Flow Simulation.

The first feature added to SOLIDWORKS Flow Simulation that caught my eye was the Heat Source dependency based on temperature. The user can now vary the heat sources as a formula or table dependency based on Temperature.

Below is a screen capture of the 2021, and 2022 dependency menu options.

solidworks 2021 flow simulation dependency menu options solidworks 2022 flow simulation dependency menu options

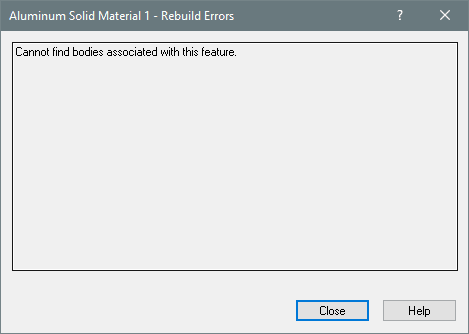

As we analyze our design, we adjust the model. Some of these adjustments suppress or replace components in an assembly. The components usually have a boundary condition associated with them. In 2021 and before, this adjustment caused a warning message “Cannot find bodies associated with this feature.” I am sure you have seen this message and had to hunt through the model to understand what changed.

solidworks 2022 flow simulation rebuild errors

In SOLIDWORKS Flow Simulation 2022 the user can automatically remove reference geometry (faces, edges, and points) of missing or suppressed bodies from the selection group. Below is the option that allows you to dismiss these selections. Selecting yes removes the references automatically without needing to edit each feature.

solidworks 2022 flow simulation rebuild errors message

In 2022 SOLIDWORKS Flow Simulation, the check geometry tools allow you to create a solid and fluid body when Improved Geometry mode is enabled.

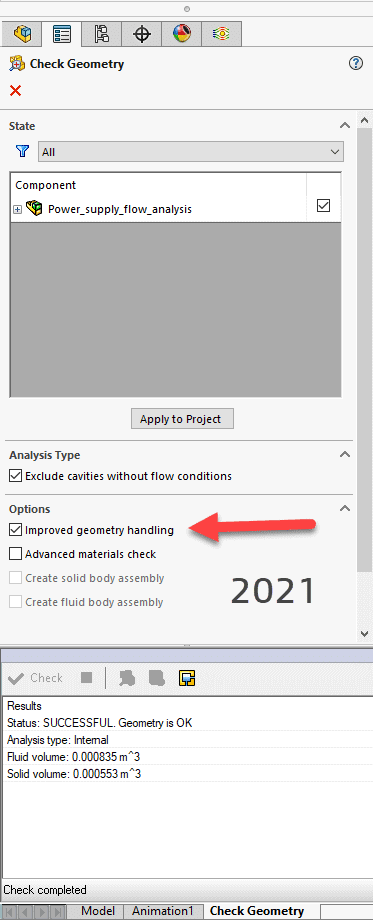

Below are the 2021 and 2022 options for check geometry with improved geometry handling.

solidworks 2021 flow simulation check geometry with improved geometry handling solidworks 2022 flow simulation check geometry with improved geometry handling

I hope this part of the What’s New series gives you a better understanding of the new features and functions of SOLIDWORKS 2022. Please check back to the CATI Blog as the CATI Application Engineers will continue to break down many of the new items in SOLIDWORKS 2022. All these articles will be stored in the category of “SOLIDWORKS What’s New.”
