SOLIDWORKS 2022 What's New - Routing Electrical Enhancements

SOLIDWORKS has done it again. Here are a few great Electrical Routing enhancements in SOLIDWORKS 2022.

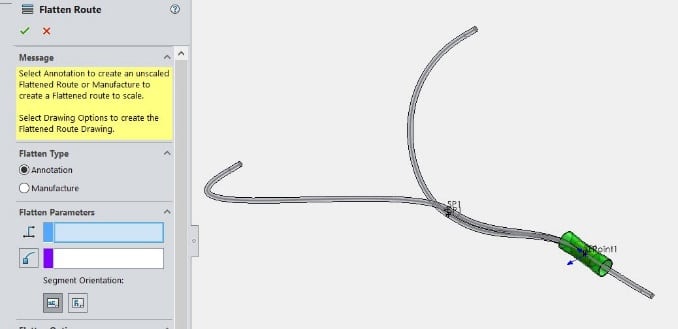

The first enhancement gives you more options when creating a Flattened Route, specifically when creating a Manufacturing Type route. In the “Flatten Parameters Property Manager”, you have the options to:

Create Flatten Route with Lines Only – Allows you to convert the spline to lines

Graphical user interface, application Description automatically generated

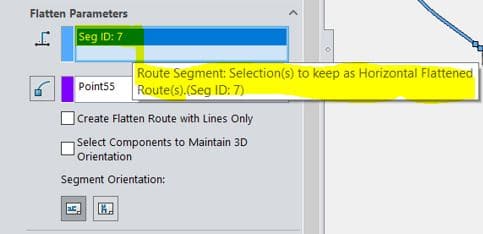

Horizontal Route Segments Selection – You can select several continuous route segments to appear as horizontal in the flattened configuration.

Here is what it looked like in 2021 Here is what it looks like in 2022.

Graphical user interface, application Description automatically generated Graphical user interface, application Description automatically generated

“Select Components to Maintain 3D Orientation” was a great addition in SOLIDWORKS 2021.

SOLIDWORKS 2022 has added even more enhancements to routing. Now, External Connectors can be added to the Flattened Route. This lets us select connectors that are not in the harness but are connected to the cable.

Notice, I have 3 connectors in the top-level assembly. I created a sub-assembly harness route.

A picture containing diagram Description automatically generated A picture containing text Description automatically generated

Now, when I create a Flattened Route and create the drawing, I can include the external connectors in this drawing. Start by adding a Connectors Table to the drawing and click “Select all Connectors”. You can also remove connectors that you don’t want included.

Graphical user interface, application Description automatically generated Graphical user interface, text, application, email Description automatically generated

The Flattened Route drawing will display these External Connectors.

Diagram Description automatically generated

Are you ready for this? In SOLIDWORKS 2022, Backshells are now supported in Routing. Backshells are components that protect connectors and connected cables from electrical interference or physical damage due to environmental conditions. Backshells can also include a clamping device.

To use a backshell, you must:

• Add an axis to the backshell component that will be used to align the backshell with the route.

• Add a mate between the backshell and the connector.

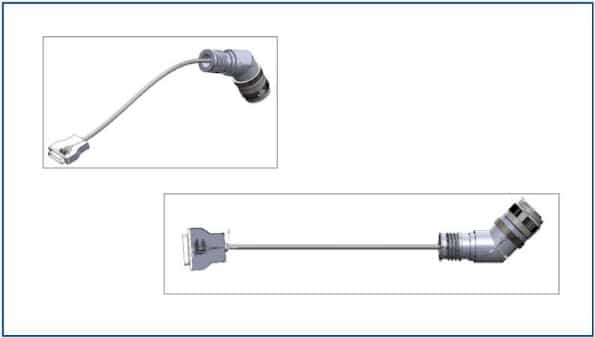

And finally, when creating a Flattened Route of a route assembly, the orientation and location of Backshells will be displayed properly.

Diagram Description automatically generated with medium confidence

I hope this part of the What’s New series gives you a better understanding of the new features and functions of SOLIDWORKS 2022. Please check back to the CATI Blog as the CATI Application Engineers will continue to break down many of the new items in SOLIDWORKS 2022. All these articles will be stored in the category of “SOLIDWORKS What’s New.”

Stay safe and have blessed day.

Roger G. Ruffin
Senior Application Engineer
Computer Aided Technology
