How do you avoid Vibrations?

Vibrations are ubiquitous in our life. Their importance cannot be ignored even if we want to. e.g we do not want the vibrations from tire movement of a moving car, travel to steering wheel. (Not that our road conditions make it easy to ride…) The washer dryer in the house, are usually kept in the basement to transmit all the vibrations to the floor.  Have you ever tried using the blender on a plastic mount?

 The general adage is: Sensitive objects need to be protected from Vibrations. Isolators are used in machine tools, photolithographic equipment, metrology equipment like coordinate measuring machines. All external vibrations generate internal vibrations in the working zone, for instance, between cutting tool and workpiece, or CMM’s measuring stylus and part being measured. One can open any design book and get a standard equation for vibration.

fn = ?n / 2 ? = (1 / 2 ?) * ?(k/m)

where k is system stiffness, m is the mass, and f is natural frequency.

The above equation leads to the conclusion:

(a)  Softer
isolators transmit less vibration from support to object. Which means isolators should be made of metal springs or lightly filled rubber.

(b)  The object becomes sensitive to minor excitations. The practical aspect being, machine tool tables reversing directions or repositioning of photolithography tools.

Hence, it becomes important to make the isolating system dynamic. One approach is to simply attach a stiff block onto isolator. But this is an expensive approach, requiring floor space and lot of effort to move.

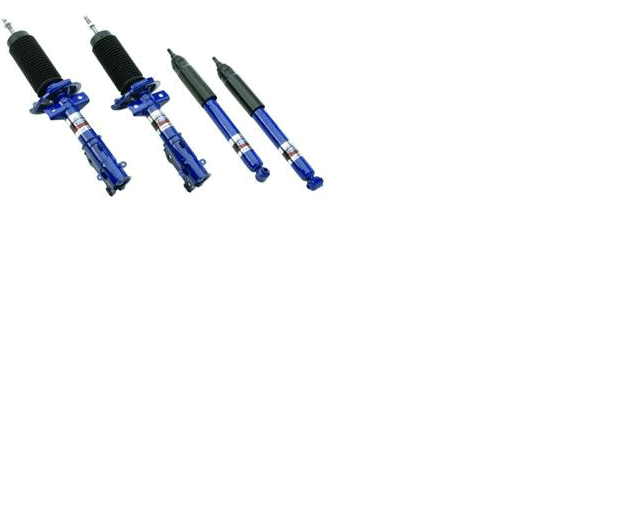

This leads to need for a dynamic damper, such that  damping offered is relative to applied frequency and stiffness of the structure. E.g:  door dampers, or dampers used in race cars.

, How do you avoid Vibrations?

Vibrations in these two cases are unidirectional (axial).
For more complex systems,(CMM machine, machine tools, photolithographic
equipment ) designers need to consider multi-directional vibrations.

SOLIDWORKS Simulations can help design dampers. Users can
also uses standard built in functions to simulate the effect of a damper. SolidWorks
Simulation has the following damping models.

: Modal
damping is defined as a ratio of the critical damping Ccr for each
mode. Critical damping Ccr is the least amount of damping that
causes a system to return to its equilibrium position without oscillating.

The modal damping ratio can
be determined accurately with proper field tests. The ratio varies from 0.01
for lightly damped systems to 0.15 or more for highly damped systems.

When experimental data is not
available, use data from a similar class of systems to determine the damping
properties. Smaller ratios are more conservative since higher ratios reduce vibration
amplitudes. In general, neglecting damping leads to a conservative estimate of
the system’s response. The software has damping ratios for standard systems.

If designer knows the
stiffness of damping material. He can use a more realistic model (Rayleigh Damping) to compute effective
damping using combination of the mass and stiffness matrices

Rajat Trehan

Product Manager – Design Validation

Computer Aided Technology Inc.
