Sheetmetal Chamfer in SolidWorks

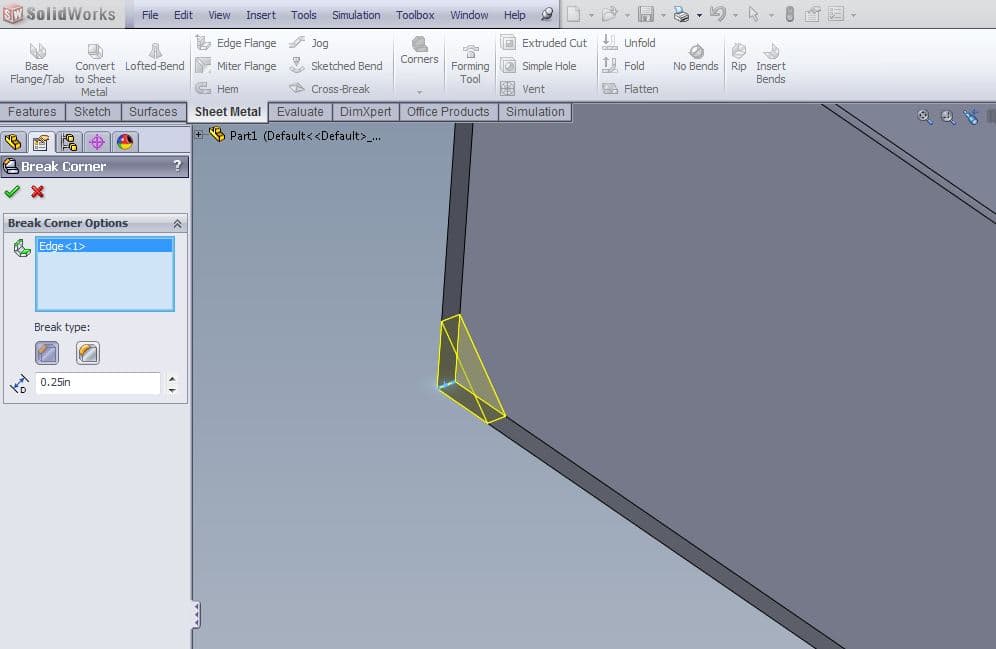

To insert a chamfer on a sheet metal part you can use Break Corner option.  It is really easy to apply this feature to several corners at a time.  Simply select the transverse edge of the sheet metal part when selecting edges.
