SOLIDWORKS 2014 Enhancement - Replace Sketch Entity

SOLIDWORKS 2014 – Replace Sketch Entity

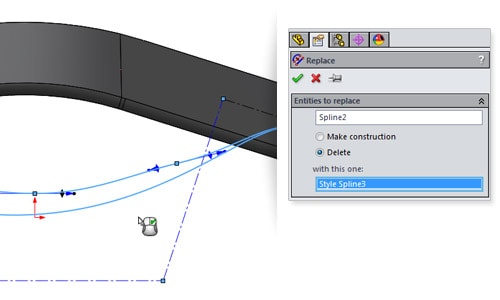

ReplaceSketchIn SOLIDWORKS 2014, you now have the ability to replace one sketch entity with another while keeping feature history and referencing the replaced part—even deep within the Feature History Tree.

  • Easily change sketches without losing or breaking any part references
  • All downstream features update as expected with no extra effort
  • Eliminates downstream errors from lost or broken references

>>Visit CATI's SOLIDWORKS 2014 page for more information and videos. Or, see What's New in SOLIDWORKS 2014 live at one of our Design Innovation Summit Events.


Jim TeDesco
Marketing Manager
Computer Aided Technology, Inc.
