SOLIDWORKS PDM Professional

Using Lists with an Alias

What is an Alias List, and how does it help me? Great questions!

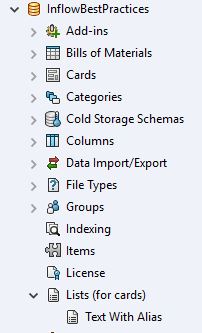

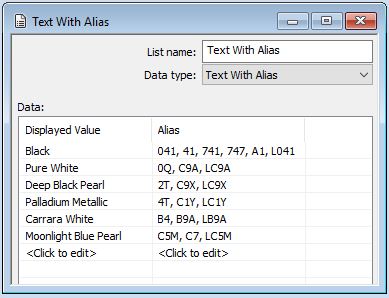

C:\Users\lgierach\AppData\Local\Microsoft\Windows\INetCache\Content.Word\Lists.jpg        C:\Users\lgierach\AppData\Local\Microsoft\Windows\INetCache\Content.Word\alias list.jpg

An Alias list is a list of values for use on a data card. An Alias list can be used in any of the following controls:

  • Listbox  http://help.solidworks.com/2018/English/EnterprisePDM/Admin/szp1450377118372.image
  • Droplist  http://help.solidworks.com/2018/English/EnterprisePDM/Admin/dez1450377118856.image
  • Combobox  http://help.solidworks.com/2018/English/EnterprisePDM/Admin/rrq1450377119403.image
  • Combolist  http://help.solidworks.com/2018/English/EnterprisePDM/Admin/dez1450377118856.image

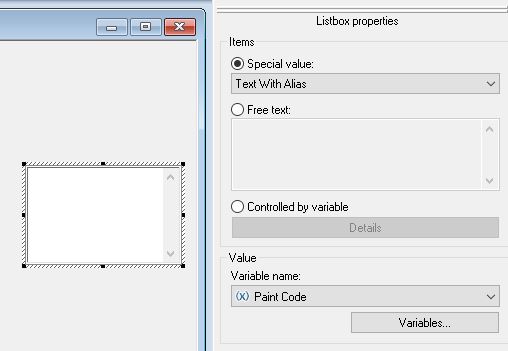

C:\Users\lgierach\AppData\Local\Microsoft\Windows\INetCache\Content.Word\Paint Code 3D card.jpg
An example way to use an Alias list is with a product line that includes a generic description as well as detailed codes belonging to the description. Such as a paint code.

When viewed on the data card, the above list appears as this:
C:\Users\lgierach\AppData\Local\Microsoft\Windows\INetCache\Content.Word\data card options.jpg

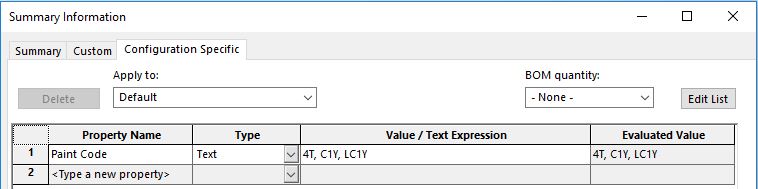

When a selection is made and saved, the value that alias belongs to is placed into the custom properties of the file. The Alias displayed info will be what is seen on the data card, while the Alias is the value stored in the custom property.
C:\Users\lgierach\AppData\Local\Microsoft\Windows\INetCache\Content.Word\paint code custom properties.jpg

An alias list can also be used in formulas for other values on the data card.

Lucas Gierach
PLM Consultant
www.InFlow-Tech.com
