Dimension/Formulae mapping

Dimension values and other formulae from Solidworks can be mapped to Smarteam.

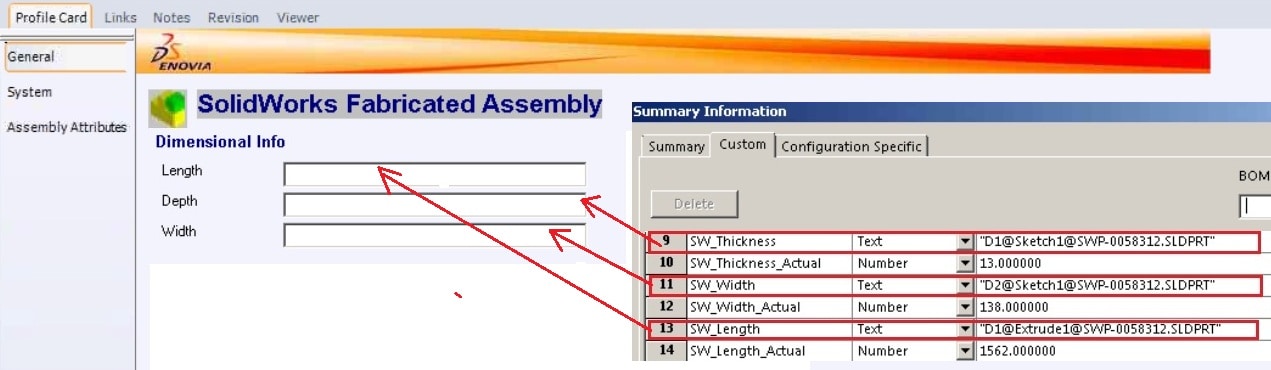

The setup is similar to attributes set through custom properties. For eg. If you want values of  "length" and "width" & "Thickness" mapped to Smarteam profile card, create the three attributes in the Smarteam data model (in the appropriate class/profile card)


1. Define mapping direction from SolidWorks to SmarTeam only. Setting both directions may lead to overriding formula with current value (Integration tools setup in Smarteam)

2. In Smarteam, the dimension/formula mapping option is diabled in default mode. To turn it on, go to System configuration editor and change the value of "SolidWorks.mapEvaluatedValue" to TRUE
