How do you insert symbols into a SOLIDWORKS sketch?

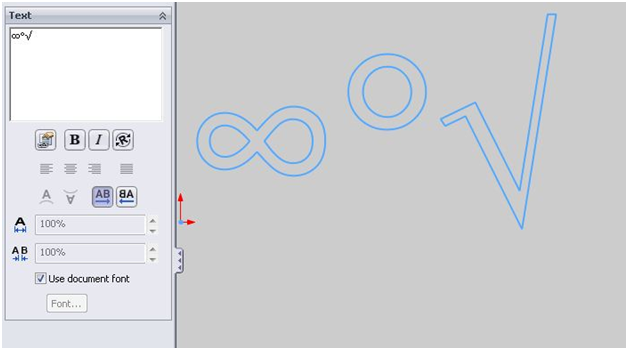

For those of you that need to put symbols into a sketch text its easy to do.  Since there isn’t a symbols button while in the sketch text property manager, you have to open up MS Word and copy the symbols from there into the text box of the sketch text property manager.  Then you can perform any SOLIDWORKS function you wish.


Ketul Patel
Computer Aided Technology, inc.
