“Normal To” Orientation.

Sometimes, when rotating “Normal To” a face, the orientation can be rotated at some obscure angle.  This can be especially true on imported parts or parts that have a lot of funky angles to them.  Take a look at this part.  When you rotate the selected face Normal To, you get the following results…

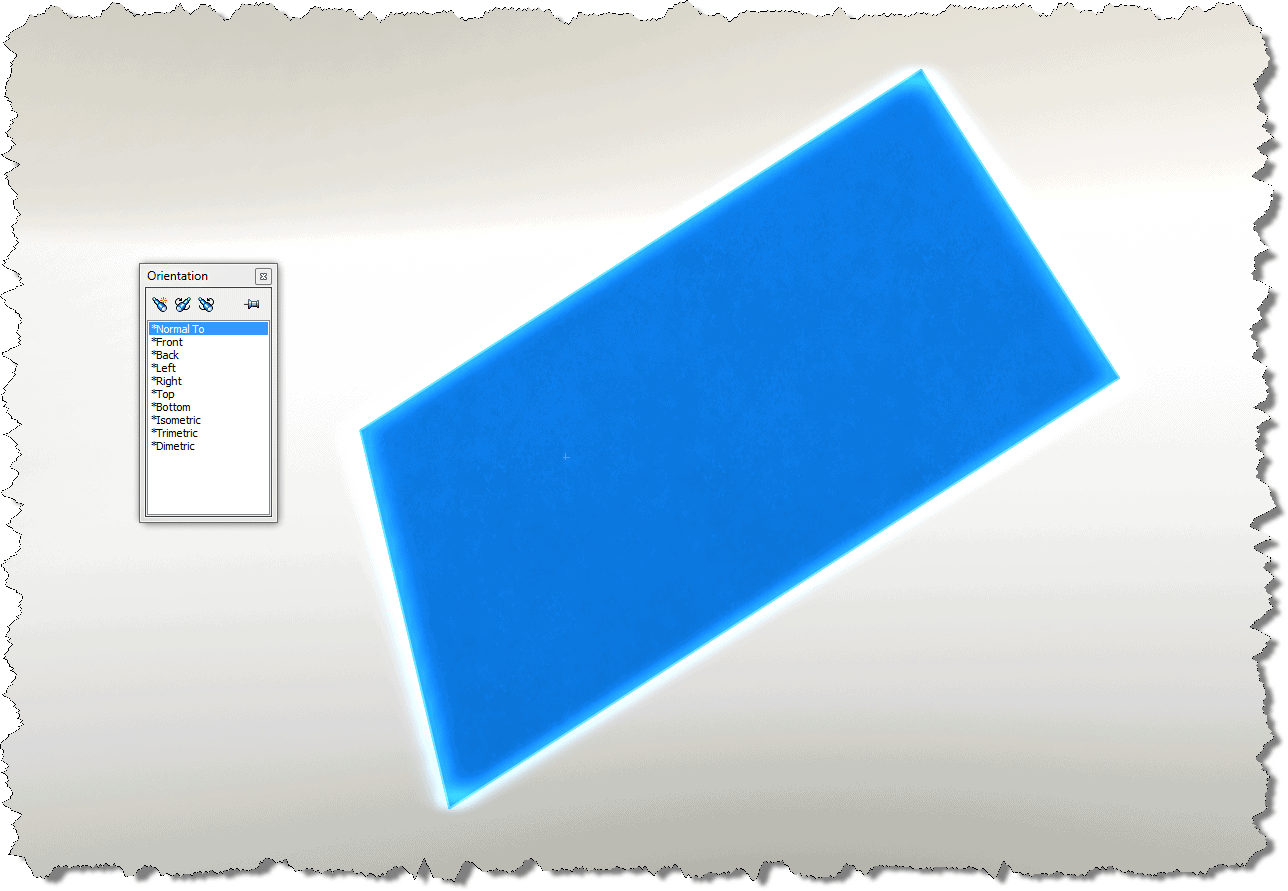

 Normal to 1

If you want to rotate the part with respect to a specific face, simply ctrl + select the two faces before selecting Normal To.  The face that is selected second will automatically be rotated to the top.

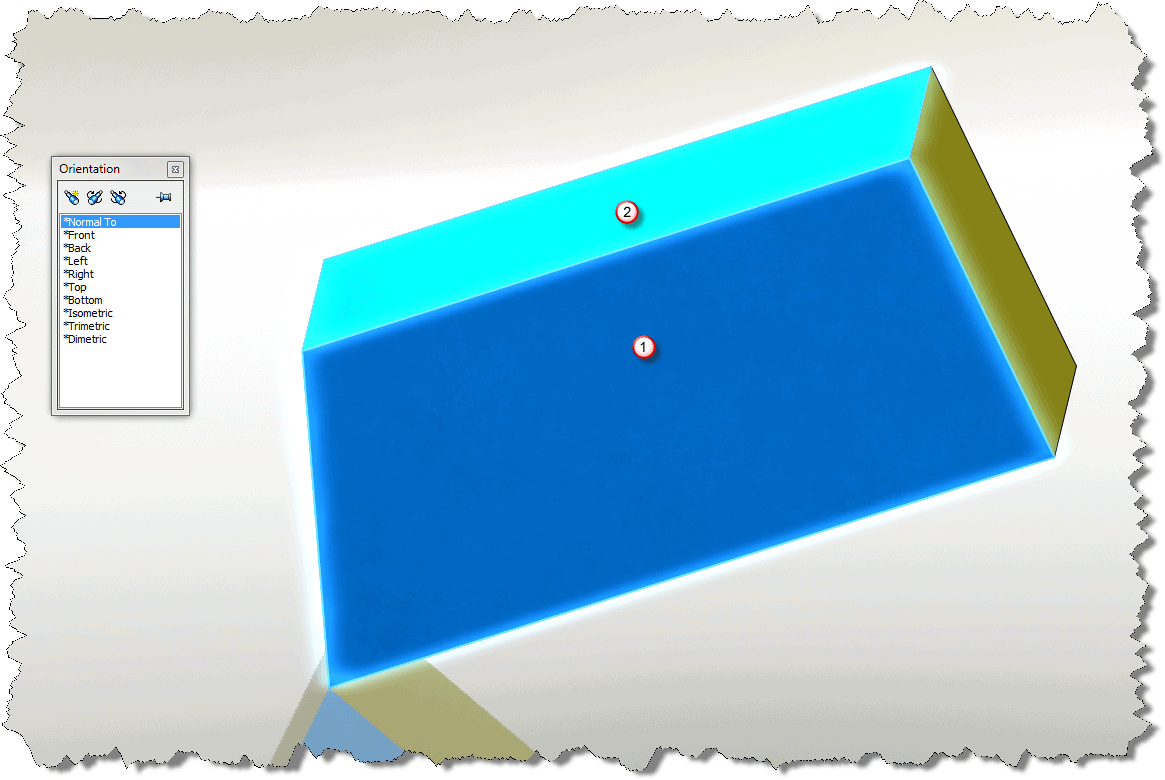

 Normal to 2

Final rotation result…

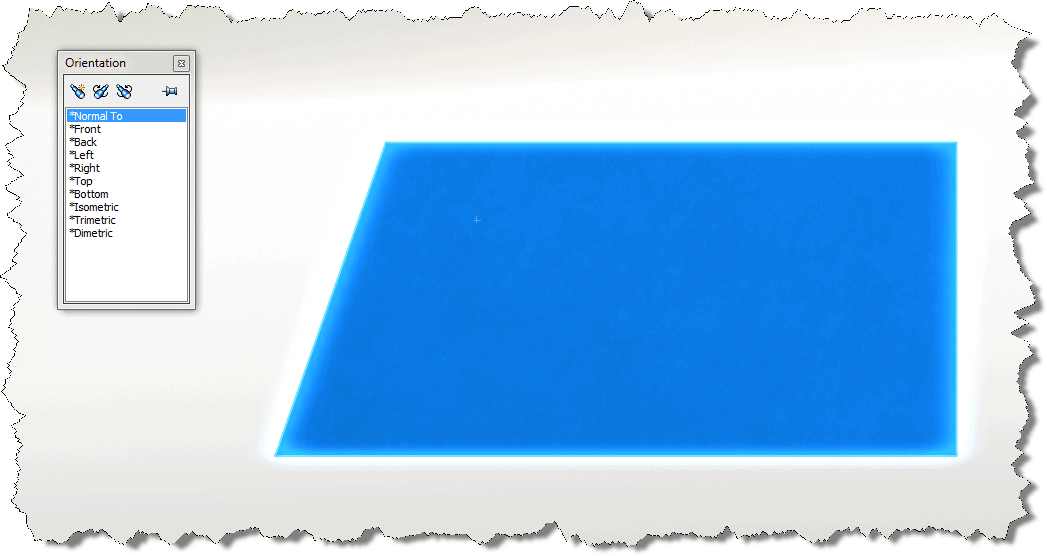

 Normal to 3


For more rotation solutions, please see the blog articles below…




Nathan Brunner, CSWP

Technical Analyst

Computer Aided Technology, Inc.
