Resetting the PDM Admin Password in SOLIDWORKS

PDM Admin passwordA question I often hear from new SOLIDWORKS administrators is “how do I change the PDM Admin password in SOLIDWORKS?” When I hear this question, it’s usually for one of two reasons. Either, the administrator needs to change it to a more secure password, or the administrator has misplaced the password and needs to reset it.

In this blog, I demonstrate step-by-step instructions and tips on how to simply change the PDM Admin password. Let’s get started.

I need a more secure password

The most common issue is that the administrator needs a more secure password. To do this, you must first log into the machine that has the Archie Server installed. Go to Start and type “Archive Server Configuration” in the search. Select the tool to load it.

PDM Admin password

Double-click on the archives folder to show the vaults on your archive. Right-click on the vault and select Properties. On the Login tab, click the Password button. It will request both your current and new password.

PDM Admin password

Press OK to complete.

Tip: If you have replicated Archives, this should be repeated on all servers.

Alternatively, you may see the following when you load the vault properties indicating it is using the default admin password.

PDM Admin password

In this case, you can reset the password from Tools > Default settings.

My PDM Admin password has been misplaced

Another common issue is that no one knows the current Admin password. This can be troublesome because the reset password dialog requests the current one. The only way to correct this is in the program registry. Go to Start, type “regedit”, and select the appropriate tool.

PDM Admin password

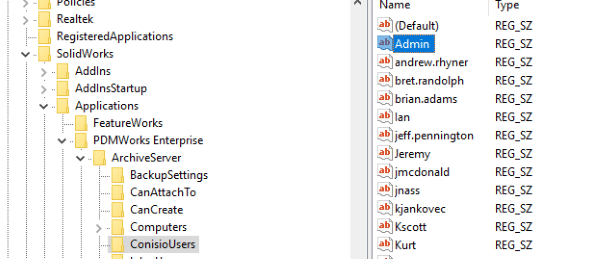

Go to HKEY_LOCAL_MACHINESOFTWARESolidWorksApplicationsPDMWorks EnterpriseArchiveServerConisioUser and delete the Admin key.

PDM Admin password

Do the same for the Admin key contained in KEY_LOCAL_MACHINESOFTWARESolidWorksApplicationsPDMWorks EnterpriseArchiveServerVaults[vault]ConisioUsers.

Then, you can follow the same procedure above, just leave the current password field blank.

And there you have it, I hope you found this SOLIDWORKS Tech tip helpful. You can view more tips and tricks listed below.
