In SOLIDWORKS 2018, you can now use DimXpert to automatically annotate one of the two components of a fixed or floating fastener assembly. Starting with the source component, its annotations are used to create the annotations on the target component using the fixed and floating fastener formulas. To use DimXpert to automatically annotate one of the two components of a fixed or floating fastener assembly.

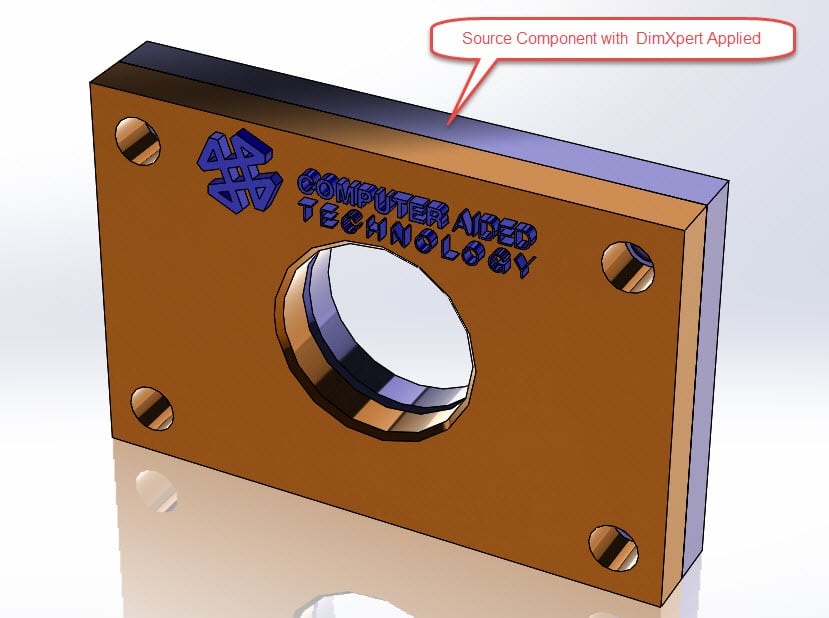

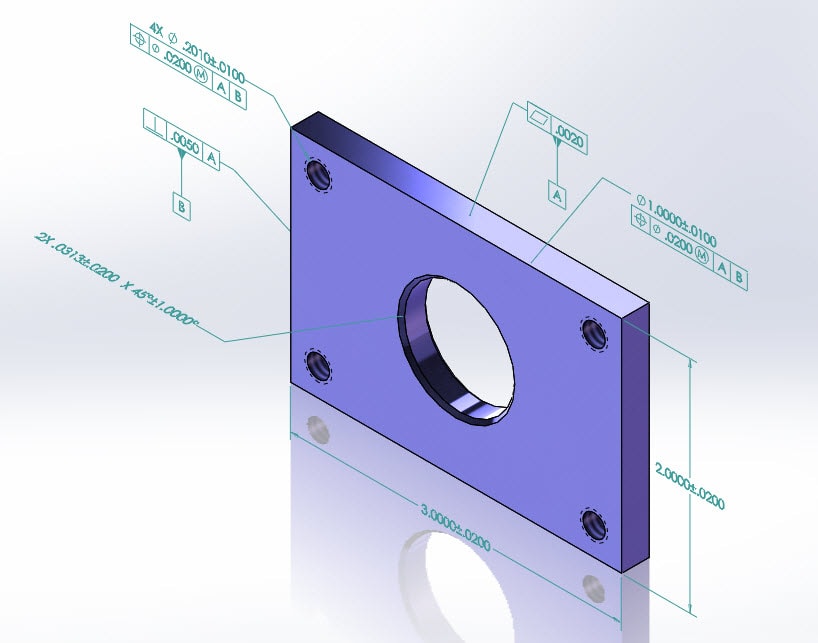

See the Source component below which already has DimXpert annotations applied.

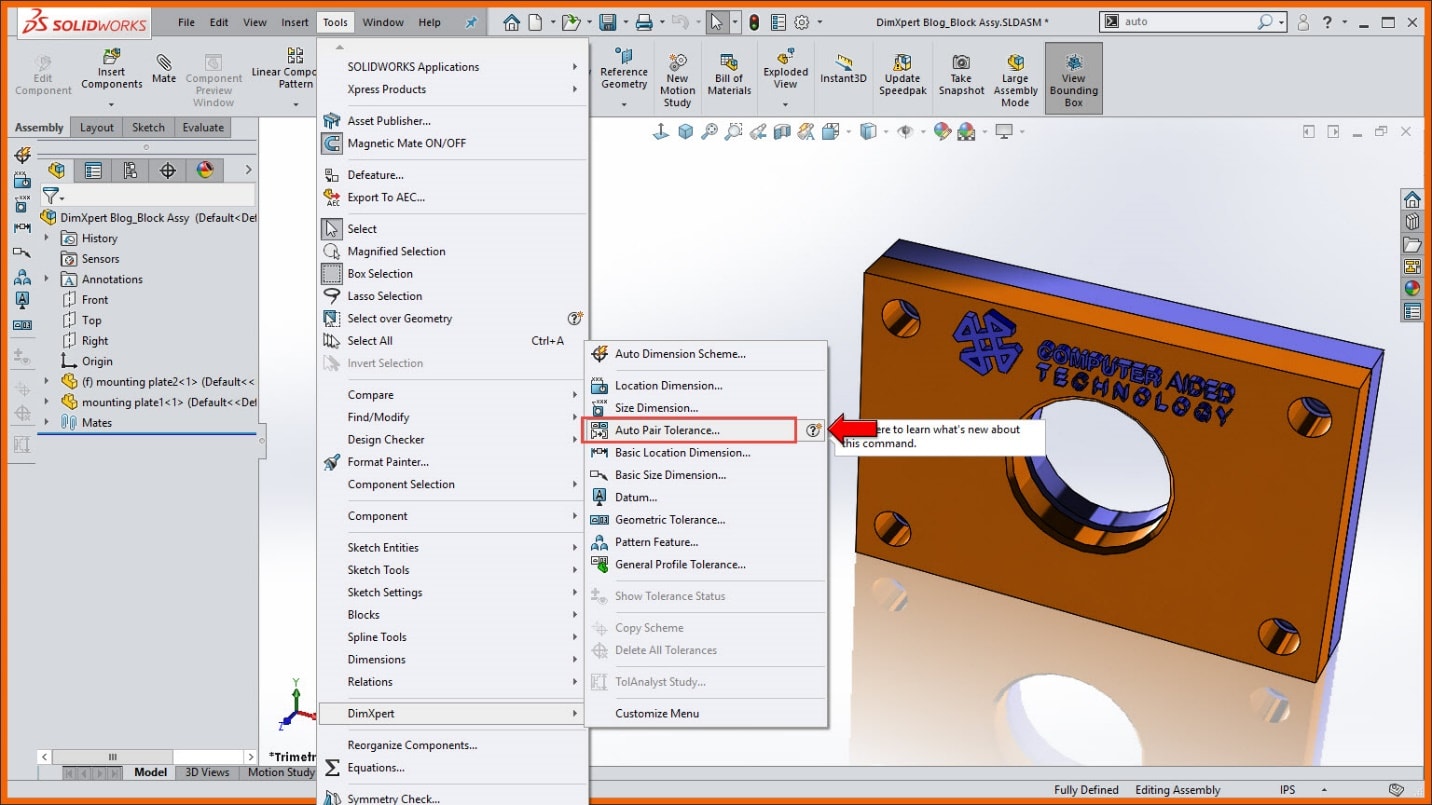

Step 1. Click Tools > DimXpert > Auto Pair Tolerance.

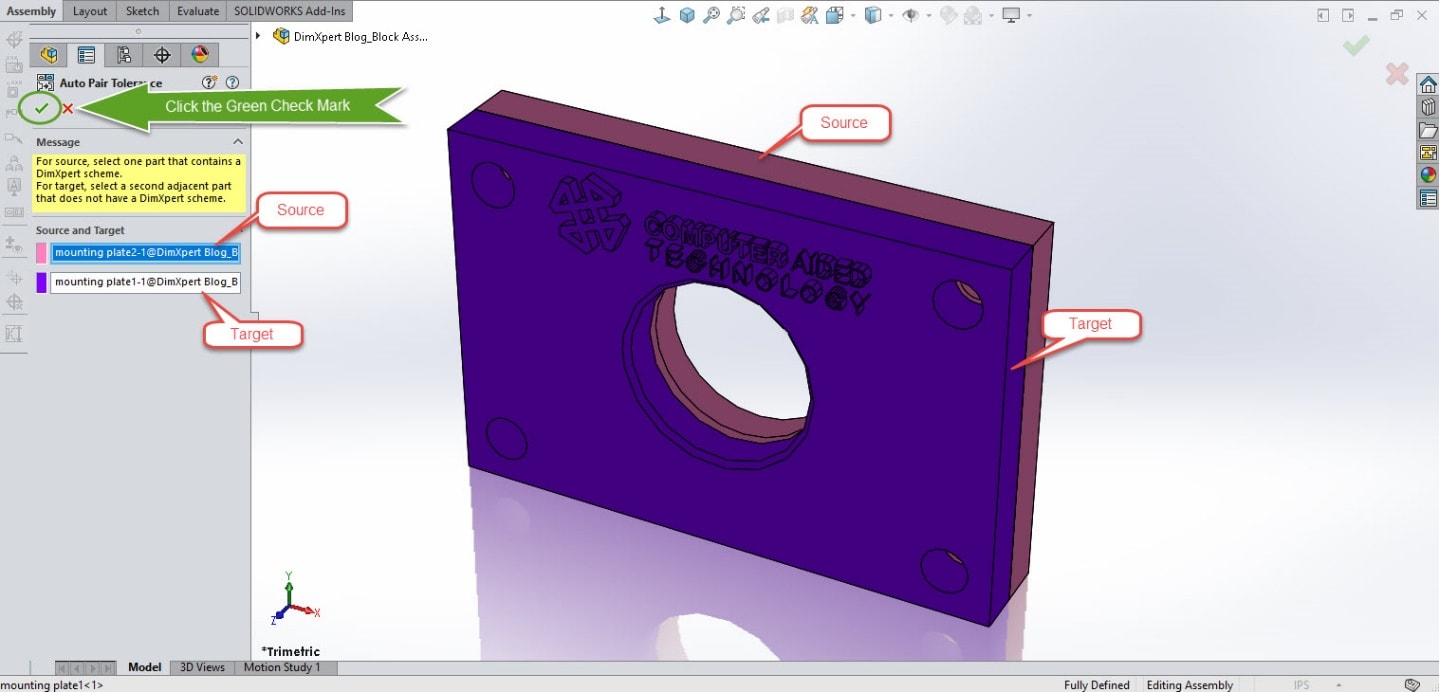

Step 2. Select the component with applied DimXpert annotations as your ‘Source’ part. And then select the ‘Target’ component you want to copy from the ‘Source’ DimXpert annotations to.
Step 3. Click the green checkmark to apply.

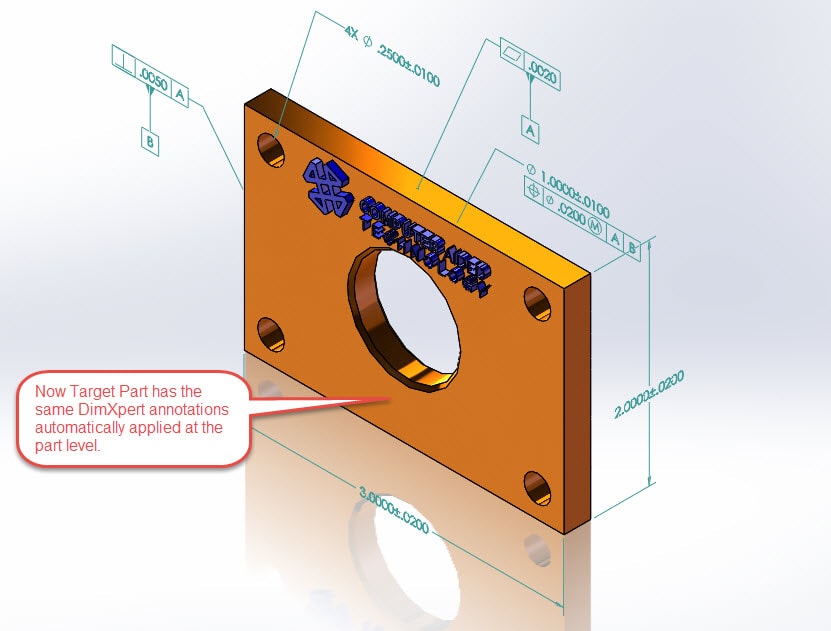

The DimXpert annotations automatically annotate one of the two components of the assembly.
