SOLIDWORKS 2019 Installation Guide Part 3 – Electrical Installations

SOLIDWORKS Electrical can be broken down into two parts SQL Meta Data and Electronic Program Data.

SQL Meta Data has

  • All data about everything… (All the CAD document data is contained here.)

Electronic Program Data

  • Program Files – The application, (without this the program will not run).
  • Program Data – The data, (without it the program will run…but will have no content)

Licensing scheme for SOLIDWORKS Electrical:

  • SOLIDWORKS Electrical Schematic
  • SOLIDWORKS Electrical 3D
  • SOLIDWORKS Electrical Professional (limited to 1 PC)

Use the SOLIDWORKS Installation Manager. The installation manager is a simplified process that will help guide you through the install.

First a few important questions…

  • Do you want to share the data now or in the future?
  • How many people will share the data?
  • Do you want to use an existing SQL Server instance?

Is it a local or server installation?

Individual

Everything is installed locally

If choosing the individual method:

, SOLIDWORKS 2019 Installation Guide Part 3 – Electrical Installations

If you are adding to an existing SOLIDWORKS installation you will need to choose Modify.

, SOLIDWORKS 2019 Installation Guide Part 3 – Electrical Installations

Enter your serial number for SOLIDWORKS

A SolidWorks Electrical Schematic code is generally only required where SolidWorks is NOT being installed. (If the SOLIDWORKS and Electrical serial numbers match only use the SOLIDWORKS number box)

, SOLIDWORKS 2019 Installation Guide Part 3 – Electrical Installations

Product selection menu and the more button on the summary page give you the options to turn on the products and configure the locations etc. The below image is the appropriate settings for an Individual install with the end user machine being the SQL server host. Under the Products click Change and then check the boxes for SolidWorks Electrical and the sub products:

  • SolidWorks Electrical Schematic
  • SolidWorks Electrical 3D
  • Collaborative server
  • Data

, SOLIDWORKS 2019 Installation Guide Part 3 – Electrical Installations

Click next to get to the SOLIDWORKS Electrical Options menu.

  • Specify server SQL name and data location
  • All other settings can be local

, SOLIDWORKS 2019 Installation Guide Part 3 – Electrical Installations

Or you may need a new instance if it has not been setup before.

SQL Server

  • New instance
  • Password

, SOLIDWORKS 2019 Installation Guide Part 3 – Electrical Installations

Upgrading an Existing Install

A few of the previous screens may look different if you already have installed an older version of SOLIDWORKS Electrical. The first thing you should do is create an Environment Archive inside of your previous version of SOLIDWORKS Electrical. To do this, launch your current SWE install, go to file, archive environment

, SOLIDWORKS 2019 Installation Guide Part 3 – Electrical Installations

You will see a message if you have installed SOLIDWORKS Electrical on your machine previously. The environment archive done in the last step should give you a secure start if you have issues with the new version.


Likely you will already have an existing SQL Server instance on your server so it is ok to use the existing instance from a previous install.

, SOLIDWORKS 2019 Installation Guide Part 3 – Electrical Installations

Network Server Install

If choosing to use server products:

Server Products has options for installing the SOLIDWORKS Electrical server.

  • Everything except the application files are installed on a server ( for use sharing data between users, the SQL server and data folders will reside on the server)

, SOLIDWORKS 2019 Installation Guide Part 3 – Electrical Installations

Continue on to configure the settings and file locations. Remember this is on the server computer so you may use C: as well but it might be another drive letter. Work with your IT dept. to determine the proper location.

You will add all of these features to the installation

  • Data (libraries and projects)
  • Collaborative Server (multiple user interface)
  • SQL Server (data base engine)

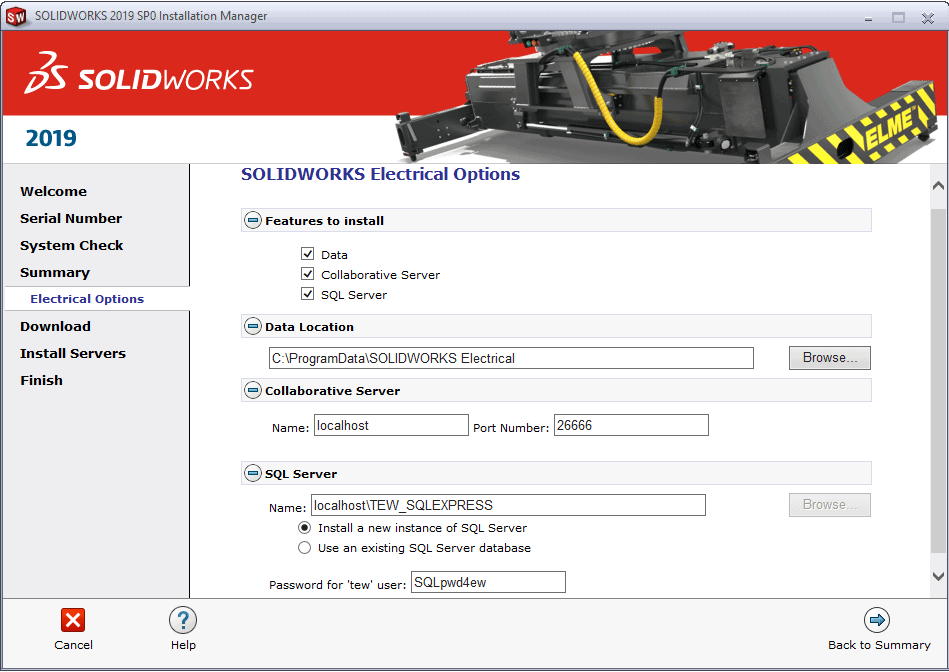

Set the SOLIDWORKS Electrical Options menu.

  • Data Location
  • Collaborative Server
      • SQL Server location
      • Initial Port

You may already have an existing SQL Server instance on your server so it is ok to use the existing instance from a previous install. Or you may need a new instance if it has not been setup before.

  • SQL Server
      • New instance
      • Existing instance
      • Authentication mode
      • Password

, SOLIDWORKS 2019 Installation Guide Part 3 – Electrical Installations

, SOLIDWORKS 2019 Installation Guide Part 3 – Electrical Installations

Network Client Install

These settings will similar to the individual install with these slight changes. Uncheck the collaborative server and data options. These will be provided by the server.

, SOLIDWORKS 2019 Installation Guide Part 3 – Electrical Installations

The server settings should look like this:

, SOLIDWORKS 2019 Installation Guide Part 3 – Electrical Installations

Potential Errors:


Causes

Invalid permissions

  • Machine
  • SQL

Connection

  • Firewalls
  • Anti-virus
  • Network connection
  • Install settings

Password

  • Incorrect password
  • TEW password length (also seen as 27506)
  • Sometimes this error comes up as 27502 (if they have epdm) sometimes it’s 27506 (if there is no epdm but password restrictions are enabled)

Install settings



Causes:

Invalid permissions

  • Upgrade from major version
  • SQL database owner

Installation settings

  • Incorrect options chosen
  • Admin image


Causes:

SQL cannot create an instance

  • Permissions
  • System restart

If you need help with any errors please don’t hesitate to contact us for support.



***NEW FOR 2019***

Following the industry and environmental trends, SOLIDWORKS 2019 will only be available via electronic distribution for customers in US, Germany, France and Italy. You will be able to request one DVD media kit per valid serial number. Once your serial number is validated below, your media kit will be shipped within 45 business days.

https://solidworks.dsgraphics.com/solidworksmediakit

Brandon Brooks & John VenEngen
Technical Support Engineer & Senior Technical Support Engineer
