SOLIDWORKS 2020 What’s New – SOLIDWORKS Flow Simulation

Every Year SOLIDWORKS releases updates and enhancements to the Flow Simulation Software. 2020 is no different bringing three new functionality additions.

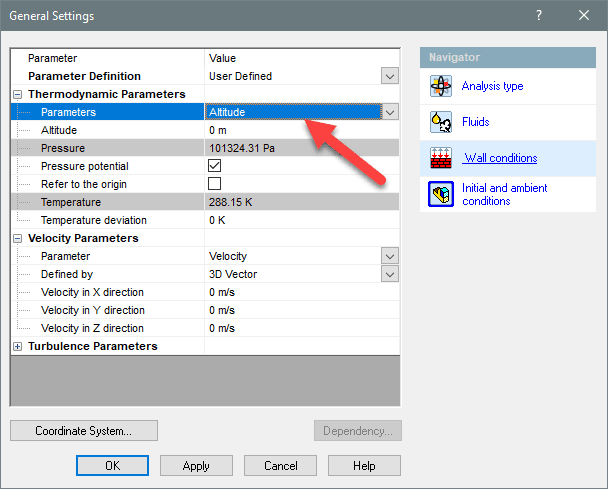

The general settings are enhanced by the addition of Atmospheric Pressure, and Temperature being linked to Altitude.

A screenshot of a cell phone Description automatically generated

Using a What If Scenario will allow the user to depict a flight path with increasing or decreasing altitude.

Fan Derating

Located in the Fan property manager the Fan Derating factor produces more realistic results based on fans typically not running at full capacity. The derating can be seen in the preview window.

A screenshot of a social media post Description automatically generated

Logical Expressions in Formula Dependency

2020 now enhances dependencies using conventional Boolean expressions like IF, AND, OR, NOT, >, <, and =. This allows the user to couple sensors to define one goal.

A close up of a device Description automatically generated

I hope this part of the What’s New series gives you a better understanding of the new features and functions of SOLIDWORKS 2020. Please check back to the CATI Blog as the CATI Application Engineers will continue to break down many of the new items in SOLIDWORKS 2020. All these articles will be stored in the category of “SOLIDWORKS What’s New.”
