SOLIDWORKS 2020 What’s New – Split Members

In SOLIDWORKS 2019, a new structure system was introduced to allow you to create and modify structural members of different profiles in one feature. The structure system uses primary and secondary structural members in a workflow that makes it easier to create complex structure systems with flexible corner management and trimming. In SOLIDWORKS 2020, you can now split primary and secondary members by specifying references or dimensions. This new functionality lets you simply reference faces, reference planes, or members to use to perform the split. In addition, SOLIDWORKS now has the option to manually enter a specific Split Length dimension for length, which includes a direction vector. Another new option in SOLIDWORKS 2020 allows you to select a member and then enter the number of instances that you want the member to be split into. The new Split Member command is very easy to ease and very straight forward.

Splitting Members by Reference
When you are editing the Member Properties in the Structure System mode of SOLIDWORKS, all you have to do is select the structural member in the graphics area that you want to split. You can Ctrl + select more than one member if you want to split them all at the same time. Here are two cross beams that have been Ctrl + selected in the Structure System mode. They appear under Selected Members in the Member Properties PropertyManager. Split Member has been checked and Based On Reference is the first choice in the pull-down box. All you have to do is pick the member that you want to be used to create the split. Below I clicked the vertical beam.

, SOLIDWORKS 2020 What’s New – Split Members

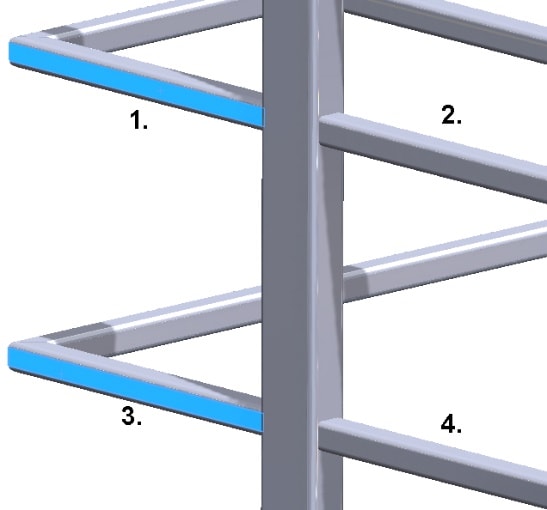

The result is that the two cross beams are split into two separate members, one on each side of the vertical beam.

A picture containing sport, exercise device Description automatically generated

Splitting Members by Dimension
The other new option in the Member Properties PropertyManager is Based On Dimension. Here I selected a structural member and picked Dimension in the Based On pull down menu. Using Split Length, the structural member can be split at the desired dimension. Shown here, the structural member is split every 0.5 inches to create 12 structural members from the one structural member.

A screenshot of a cell phone Description automatically generated

The final SOLIDWORKS 2020 new option I will cover is Instance. If you do not have a specific dimension but know the number of structural members that you want, you can simply select a structural member and pick the Instance option in Based On Dimension. Below I selected Instance and entered 12 for the number of instances to split the structural member in.

A close up of a device Description automatically generated

Now the Structure System in the FeatureManager design tree shows the 12 split instances from Member1_1 to Member1_12.

A screenshot of a cell phone Description automatically generated

I hope this part of the What’s New series gives you a better understanding of the new features and functions of SOLIDWORKS 2020. Please check back to the CATI Blog as the CATI Application Engineers will continue to break down many of the new items in SOLIDWORKS 2020. All these articles will be stored in the category of “SOLIDWORKS What’s New.”
