SOLIDWORKS 2022 What’s New – Visualize Shadow Catcher

SOLIDWORKS Visualize in 2022 includes many exciting new capabilities and enhancements that will raise the level of realism of your renderings.

Introducing the Shadow Catcher!  (yes, it does sounds like a Superhero)

The new Shadow Catcher option renders the selected part invisible, however, it receives and displays the shadows cast on it by other objects in the scene.  It catches their shadow.

Visualize comes with several primitive models (a wall, a box, a cylinder, etc) that we can use as the Shadow Catcher. We insert the primitive and adjust its position and orientation to align with the backplate image.  When converted to a Shadow Catcher, the primitive becomes transparent, however, it displays the shadow. Since the primitive is aligned with the backplate image, it appears the shadow is being cast onto the backplate image.

Backplates no longer sit quietly in the background, they now can have an active role in our rendering!

For example, we want a rendering of a kid’s bike leaning against a fence. We found a good stock image to use as a backplate and we have a SOLIDWORKS model for the bike.

stock image fence

Stock 2D Image

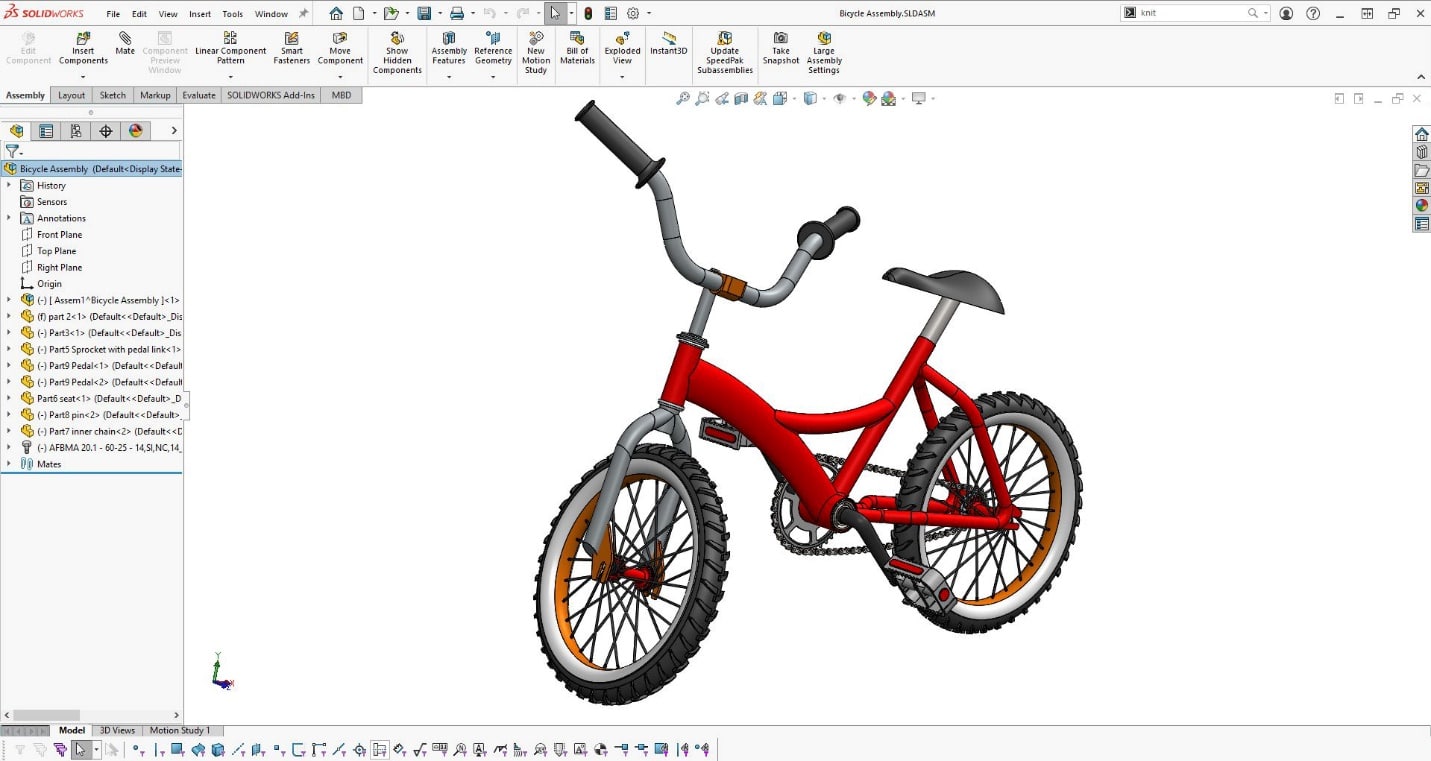

solidworks model bike


In Visualize, setting up the bike scene is easy –

  • Add the backplate of the fence image
  • Rotate the HDRI environment so that the scene lighting matches the lighting in the backplate (shadow of the bike is in the same direction as the shadow of the leaves)
  • Orient the bike to appear to be leaning against the fence

The problem is you cannot intuitively see that the bike is leaning on the fence as the shadow of the bike lies flat on the floor of the scene.
The bike looks like a free-standing, twisted bike.

solidworks bike model on fence image

The shadow of the bike should be on the ground at the wheels, and, there should be shadow on the fence, anchored where the seat and handlebars touch the fence.

Here is where the Shadow Catcher comes to the rescue!

First, we will add the primitive Wall model (it is just a planar surface), visually position and orient it to align with the fence.
Tip: Use Preview Mode to manipulate objects, you’ll get much better system performance.

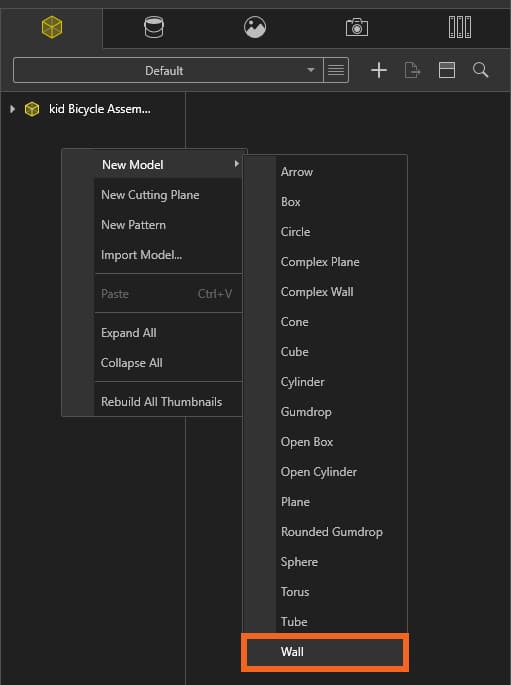

solidworks 2022 visualize menu

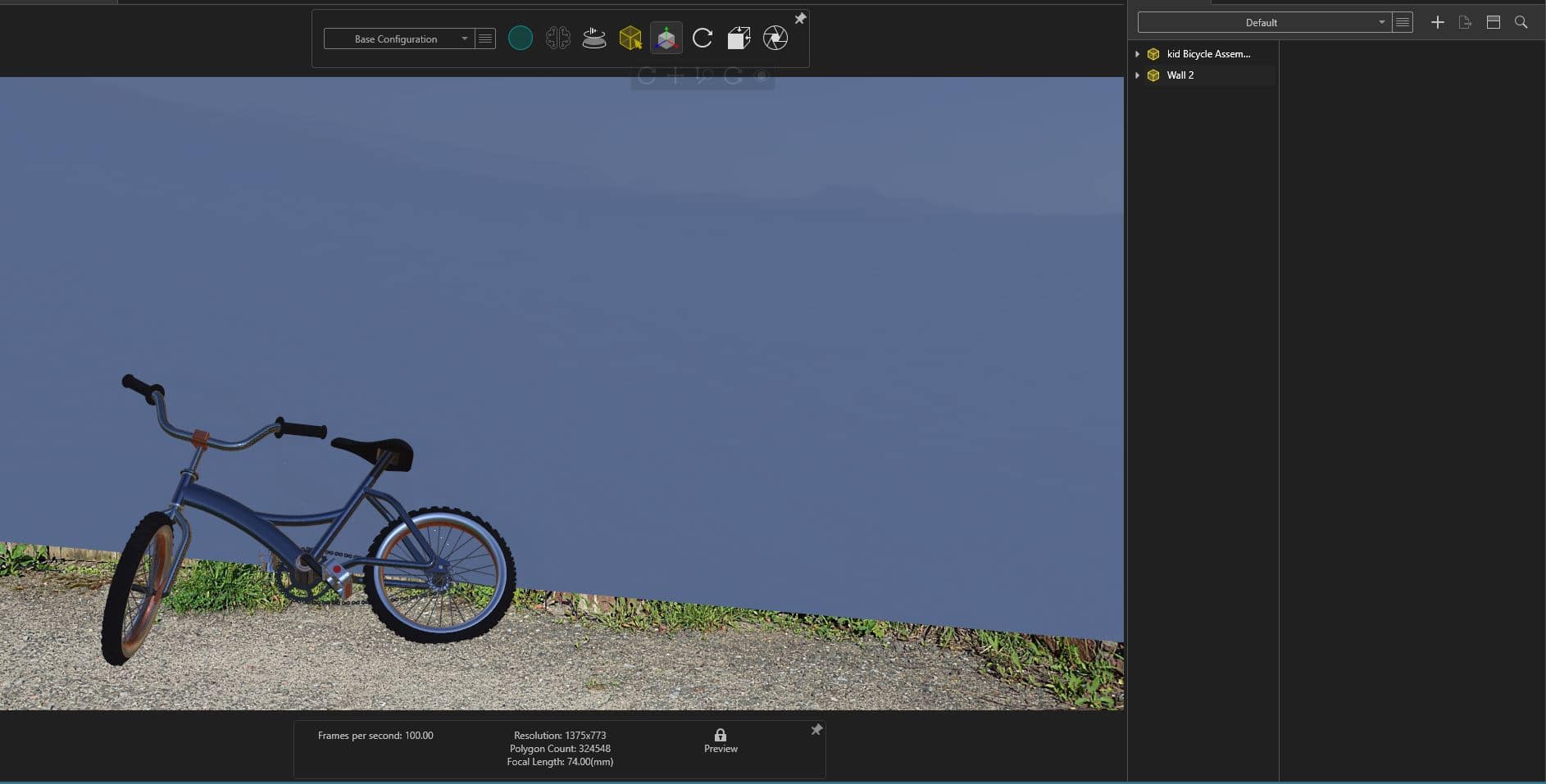

Here is the Wall behind the leaning bike, aligned with the fence (in Preview Mode):

solidworks visualize bike wall preview mode

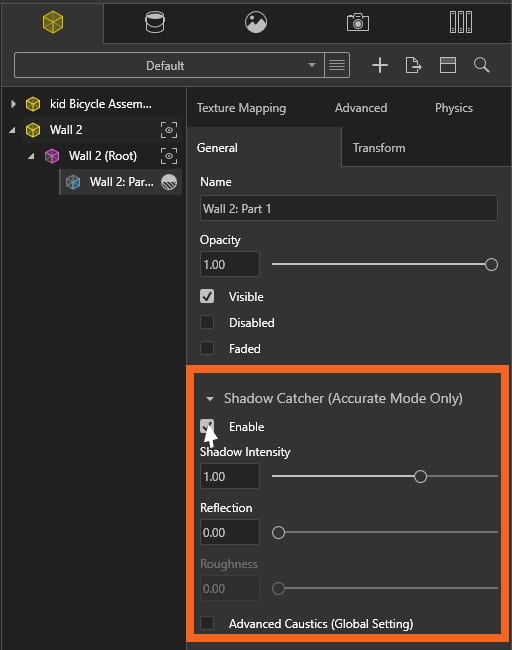

In Visualize Professional 2022, we set the Wall part object (blue icon) to be the Shadow Catcher.
The setting is located in the General Tab.

solidworks visualize shadow catcher menu

Easy enough, check to enable Shadow Catcher and…. nothing happens, there is no change.
We are still in Preview Mode, the Shadow Catcher only works in Accurate Mode.
This applies to the Rendering Mode in the Viewport and the Render settings in Output Tools.

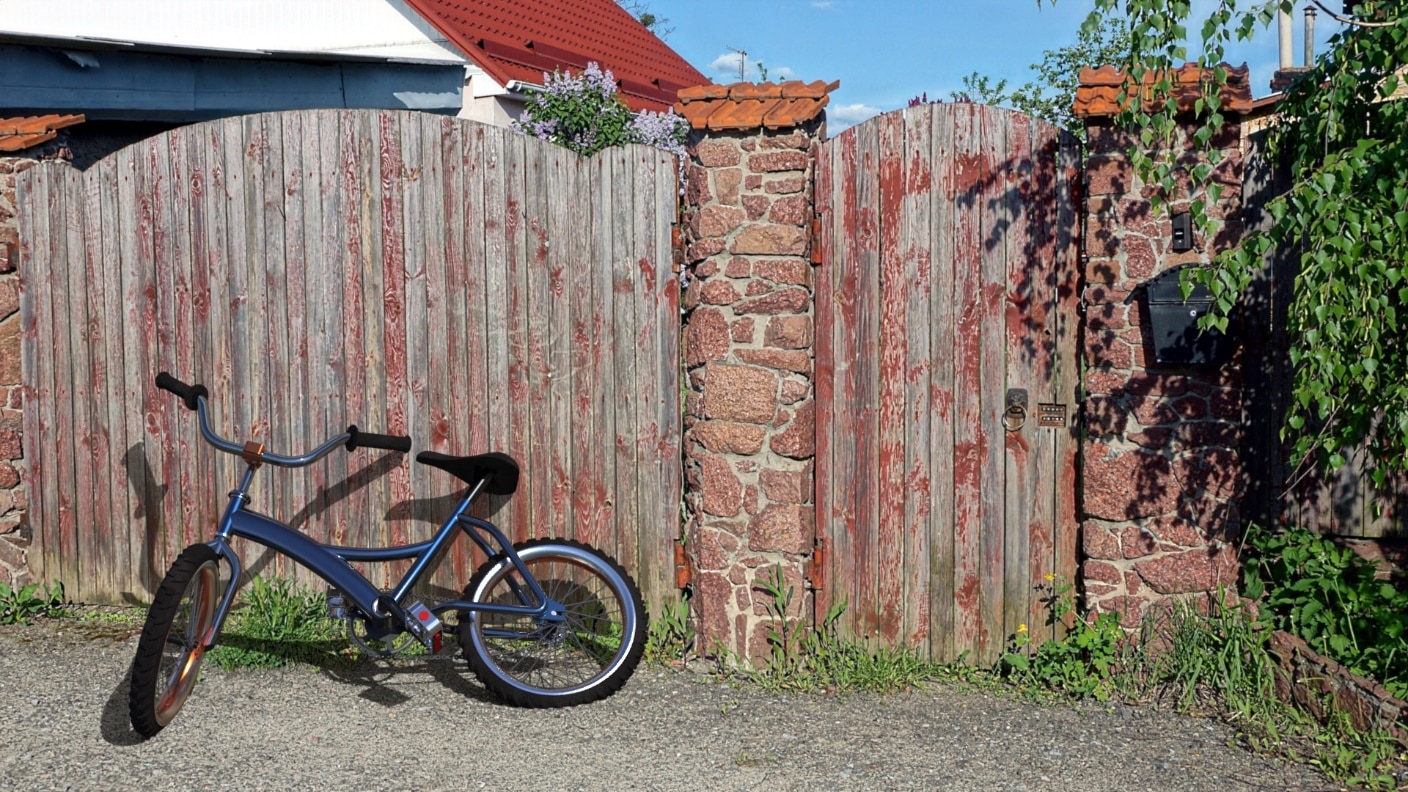

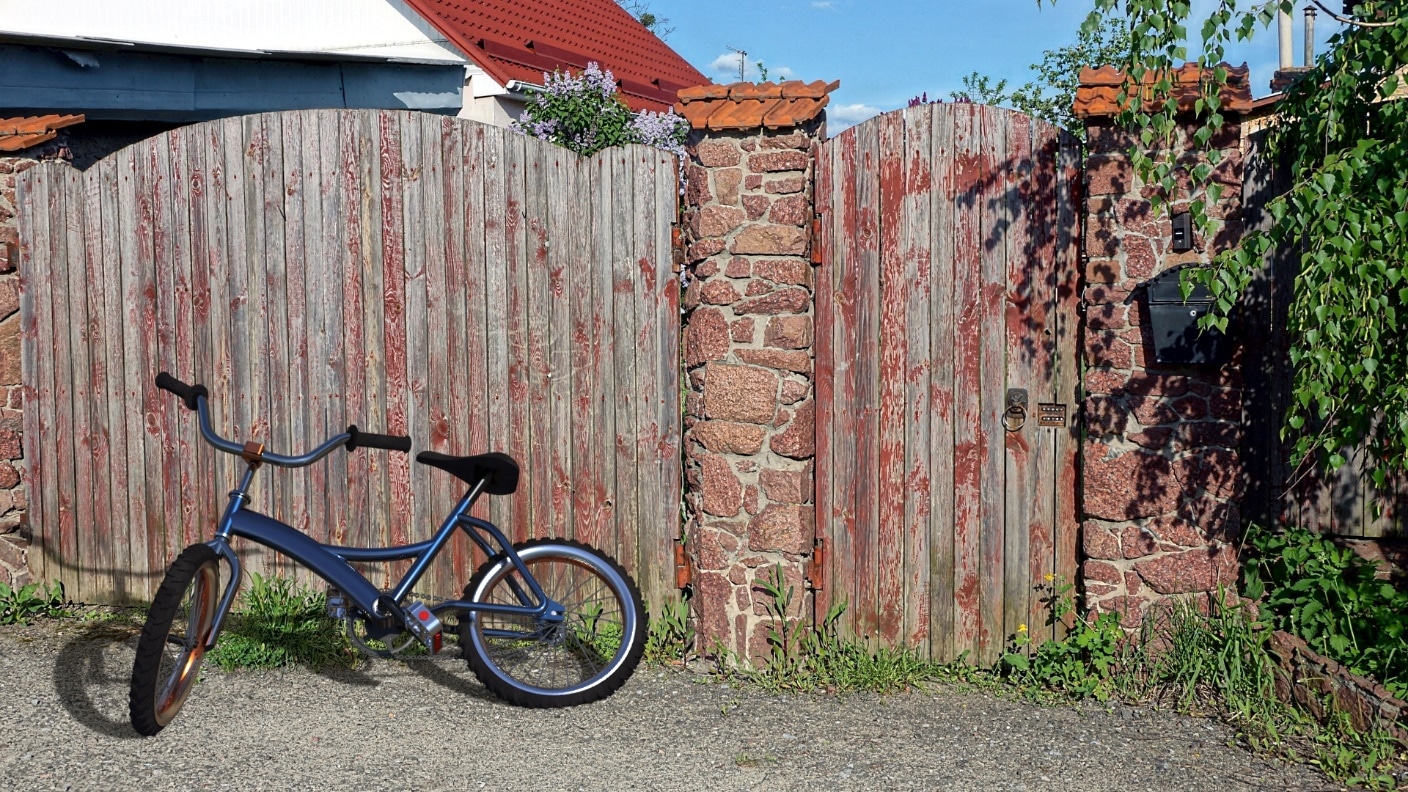

With Accurate Mode selected, the Wall object disappears showing the fence, and, we see the bike’s shadow as it would in real life – spanning the ground plane and the fence plane.

solidworks visualize shadow catcher accurate mode

The Shadow Catcher has the following controls:
Shadow Intensity – Lighten or darken the shadow.
Reflection – Specifies the amount of reflectivity in the Shadow Catcher object.
Roughness – Specifies the amount of blur of the reflection (reflection setting must be greater than 0).
Advanced Caustics – Used with Reflection and Roughness settings, improves the quality of rendered effects when light passes through translucent objects or off reflective objects.

We can make Shadow Catchers of all the Visualize primitives as well as parts imported from the 3D CAD system.

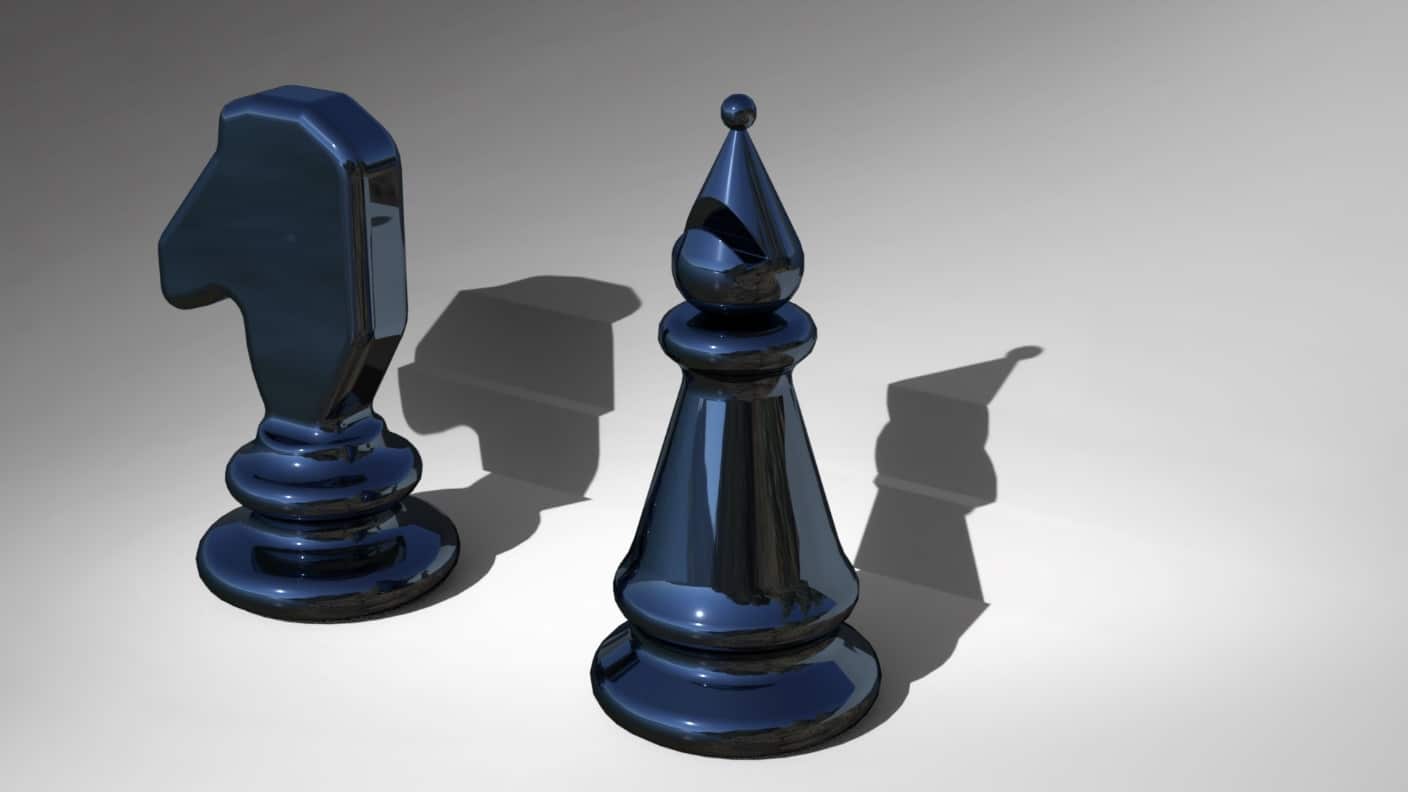

In this rendering, the Shadow Catcher is a set of stairs created in SOLIDWORKS.

, SOLIDWORKS 2022 What’s New – Visualize Shadow Catcher


This option opens up an array of possibilities for backplates and shadows.

A sketch of a house Description automatically generated with medium confidence

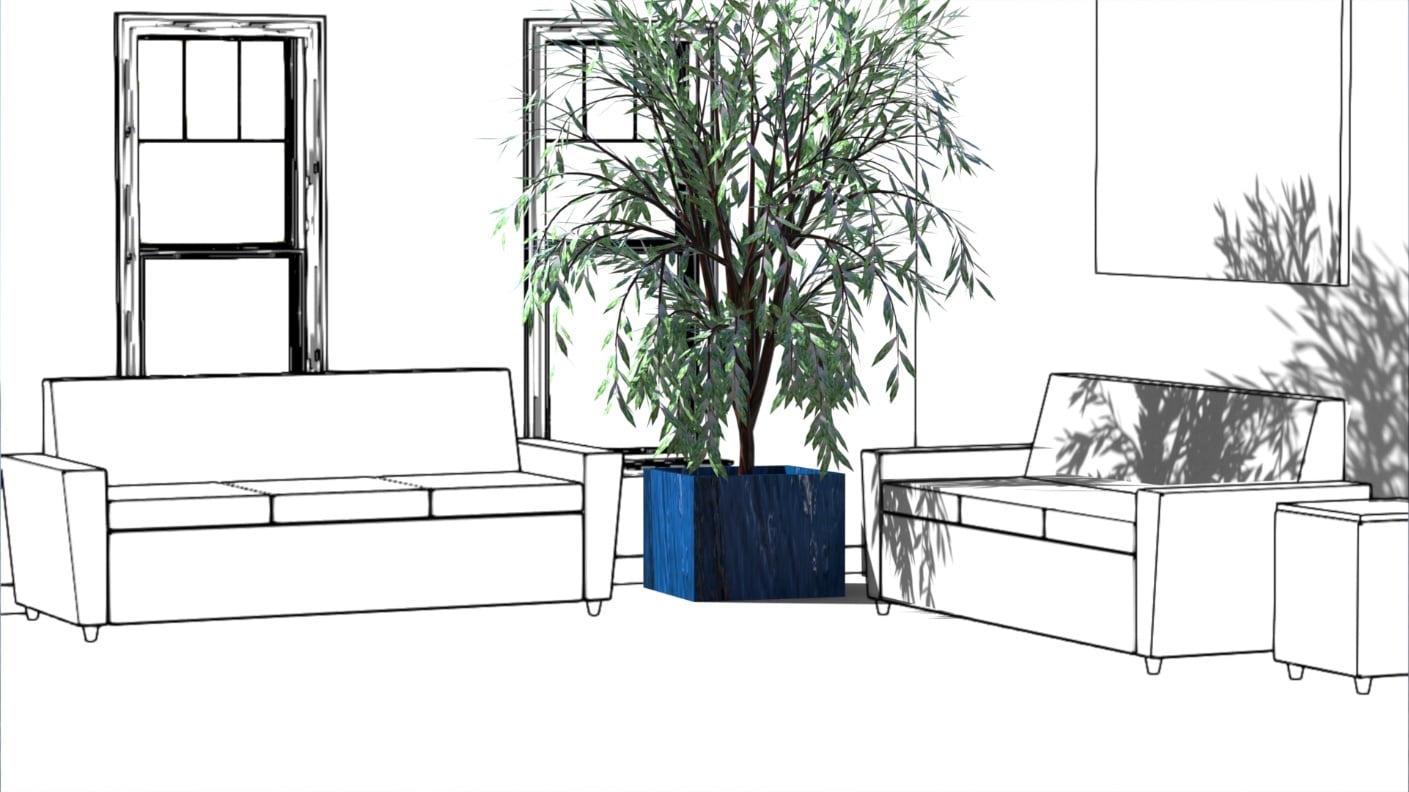

In this image, the backplate image is a black and white line drawing of a living room. The shadow of the potted tree is cast onto the couch, the wall and the picture on the wall by creating several Shadow Catchers.  Cube primitives were scaled and positioned to make up the couch, table and picture, and a Wall primitive for the wall.

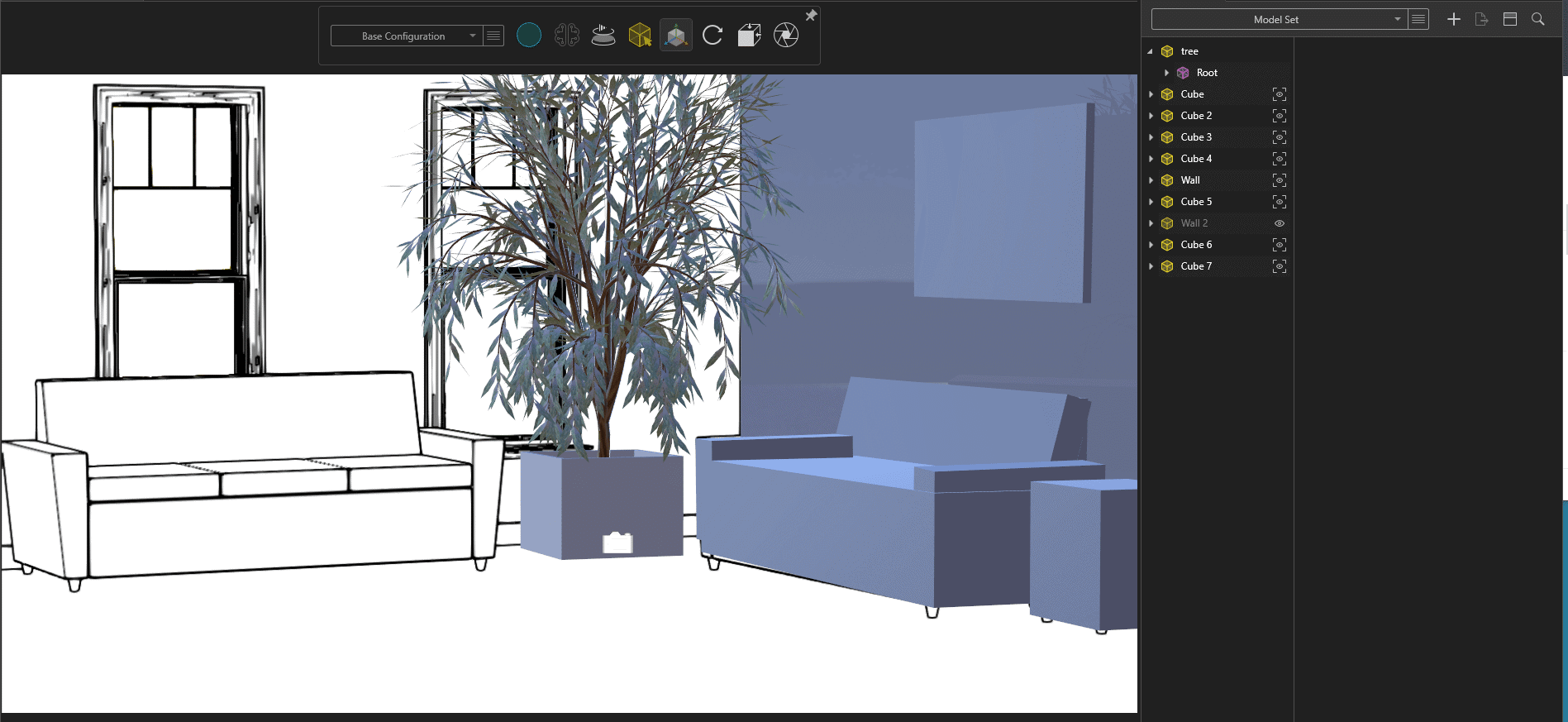

Here are all the objects in Preview Mode:

Graphical user interface Description automatically generated

This is just one of the pretty cool enhancements in Visualize 2022 that will provide real-life details that raises the level of realism of your renderings.

I hope this part of the What’s New series gives you a better understanding of the new features and functions of SOLIDWORKS 2022. Please check back to the CATI Blog as the CATI Application Engineers will continue to break down many of the new items in SOLIDWORKS 2022. All these articles will be stored in the category of “SOLIDWORKS What’s New.”

Laura Nickerson, CSWE
Application Engineer
Computer Aided Technology
