SOLIDWORKS: Exploded view in a Multi Body part

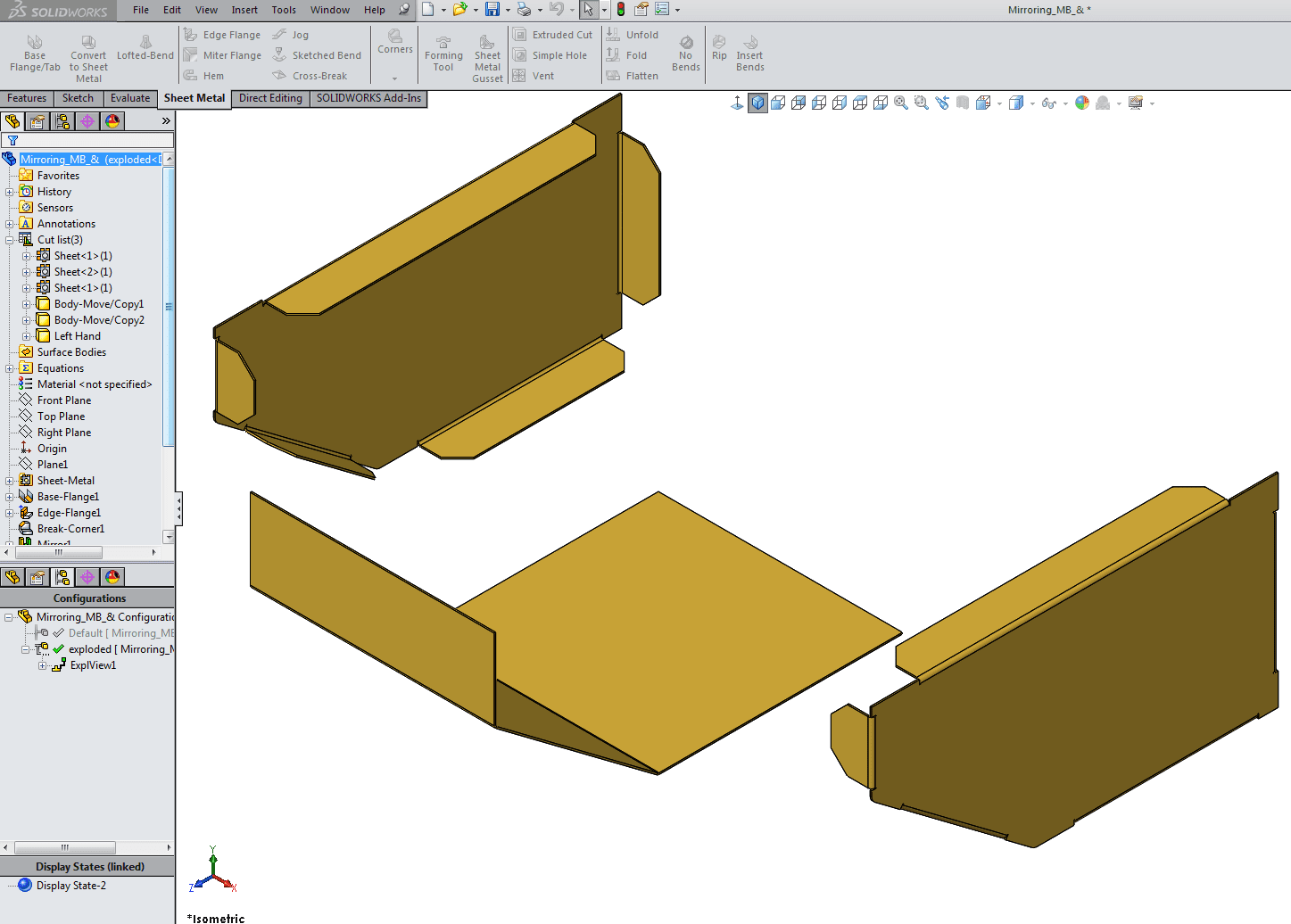

I took a call the other day from a customer working in a Multi Body Sheet Metal part within SOLIDWORKS. His part also contained an exploded configuration with an exploded view. See below.

Jan 2015 blog 1

While he was in the exploded configuration, with the exploded view activated, he did a RMB click on the Cut List and could not find Save Bodies.

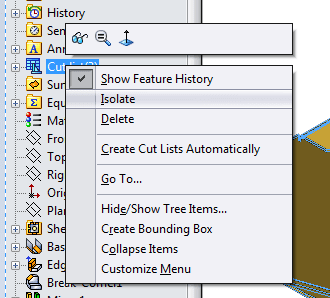

Jan 2015 blog 2

Notice above, no Save Bodies Command.

In order to activate the Save Bodies Command:

1) Activate the Default Configuration or 2) Collaspe the Exploded view.

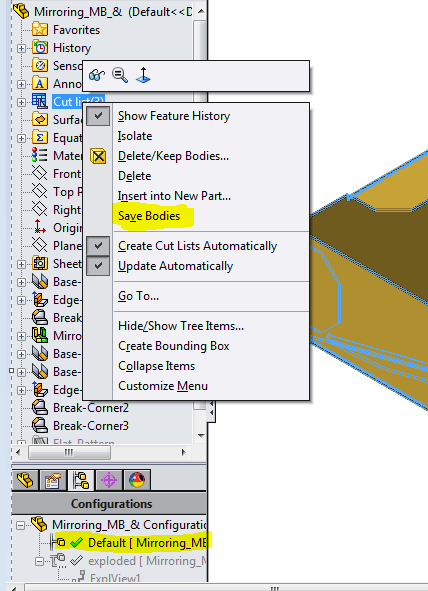

Jan 2015 blog 3

Notice above, you can now use the Save Bodies Command.

Have a great day.
