SOLIDWORKS VISUALIZE Professional Post-Processing Tools

Who needs Instagram filters or Photoshop skills anymore when you have SOLIDWORKS Visualize Professional post-processing tools?

How to:

  1. Open your model/project.
  2. Go to the cameras tab on the right.
  3. Under the filters subtab, you have to check “Enable Post-Processing.”
  4. There will be seven different filters to change.

Default for comparison:

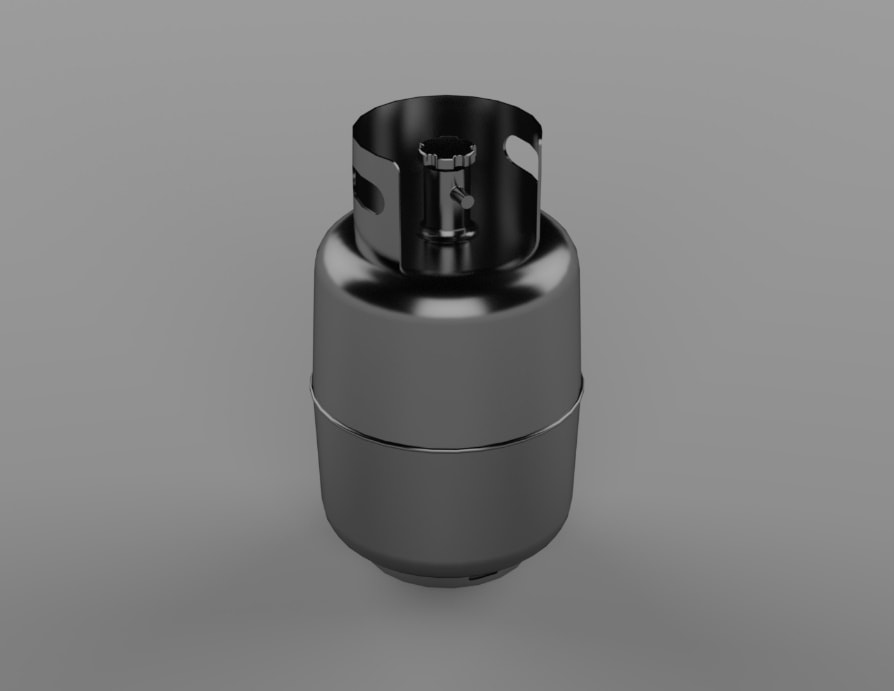

SOLIDWORKS Visualize Professional No Filter


1. Vignette: Darkens the edges of the image with a gradient to the center, creating a shadow on the edges of the camera’s field of view. (More perspective on a camera causes a stronger vignette effect).

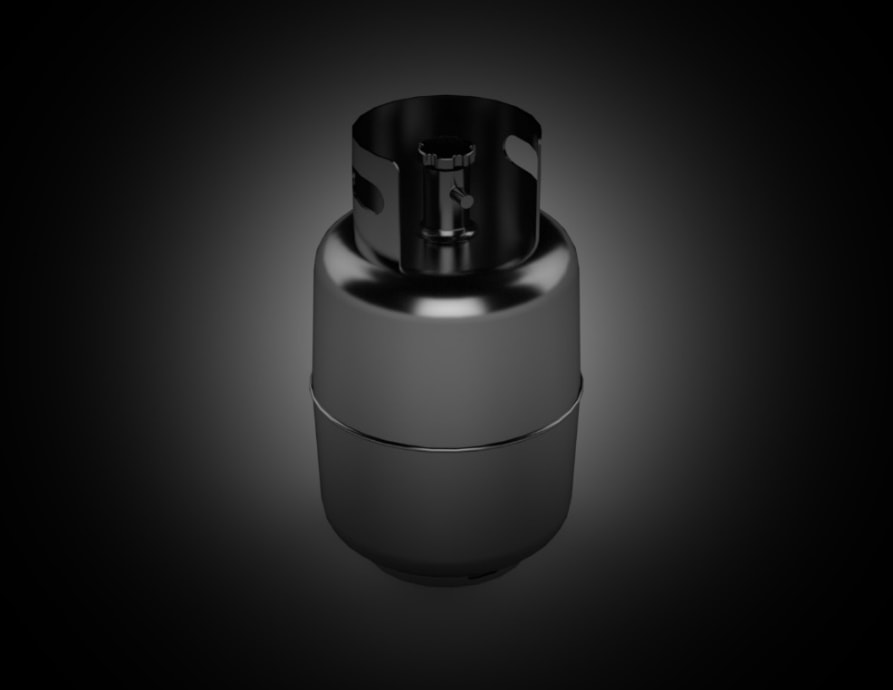

SOLIDWORKS Visualize Professional Vignette Post Processing Filter


2. Darken: Darkens the overall scene.

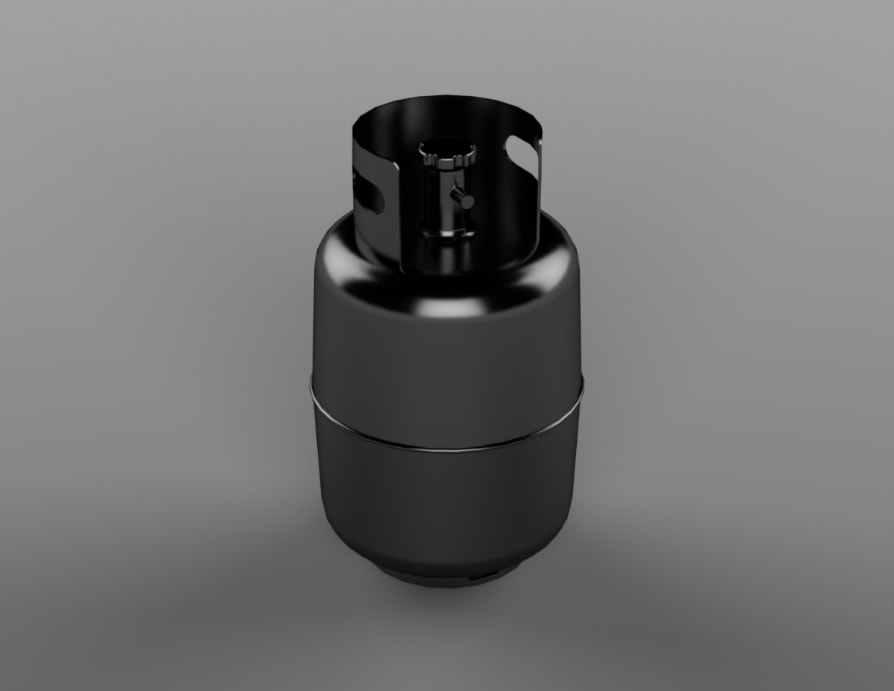

SOLIDWORKS Visualize Professional Darken Post Processing Filter


3. Lighten: Lightens the overall scene, causing highlights to come out of the picture more.

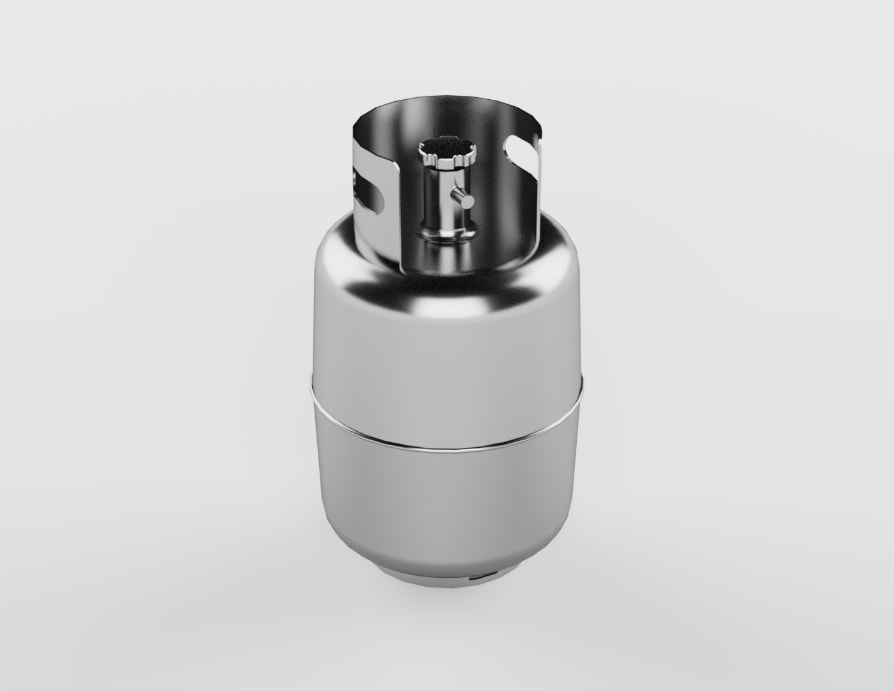

SOLIDWORKS Visualize Professional Lighten Post Processing Filter


4. Saturation: Increases/decreases the color saturation of the image. Increasing it makes the colors look more dramatic, decreasing it makes them look more washed out.

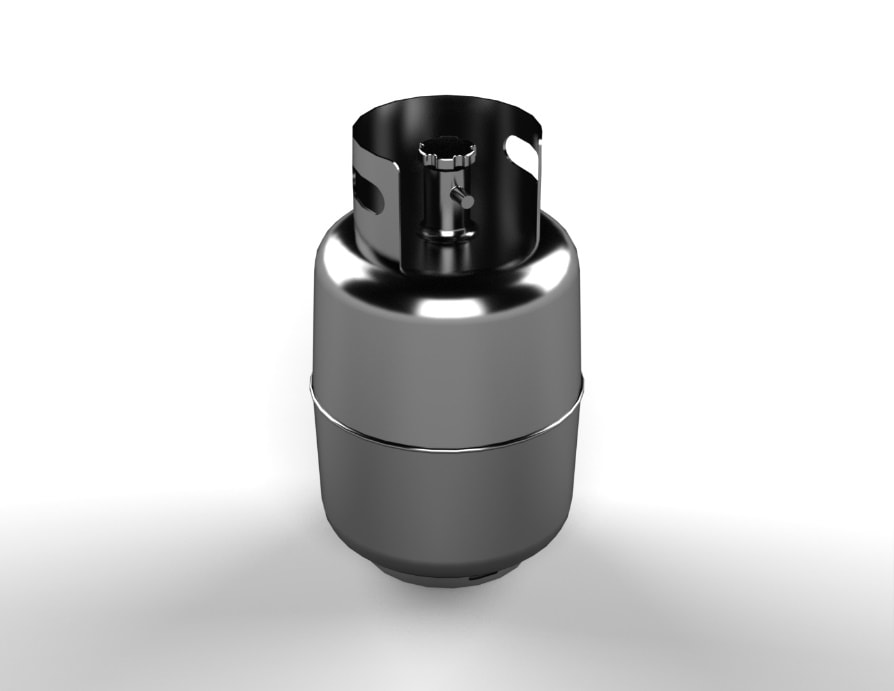

SOLIDWORKS Visualize Professional Saturation Post Processing Filter


5. Exposure: Increases/decreases the density (brightness) of the scene.

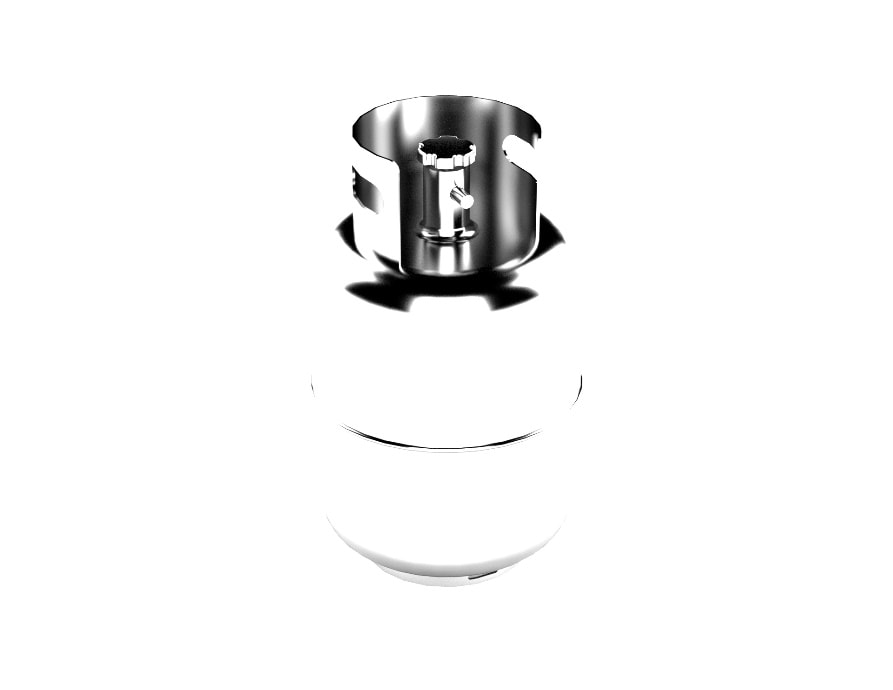

SOLIDWORKS Visualize Professional Exposure Post Processing Filter


6. Gamma Correction: Sets the gamma of your monitor. It controls the brightness of the image to look more accurate to real life.

SOLIDWORKS Visualize Professional Gamma Correction Post Processing Filter


7.Brightness: Makes the overall scene brighter, adding details to shadows.

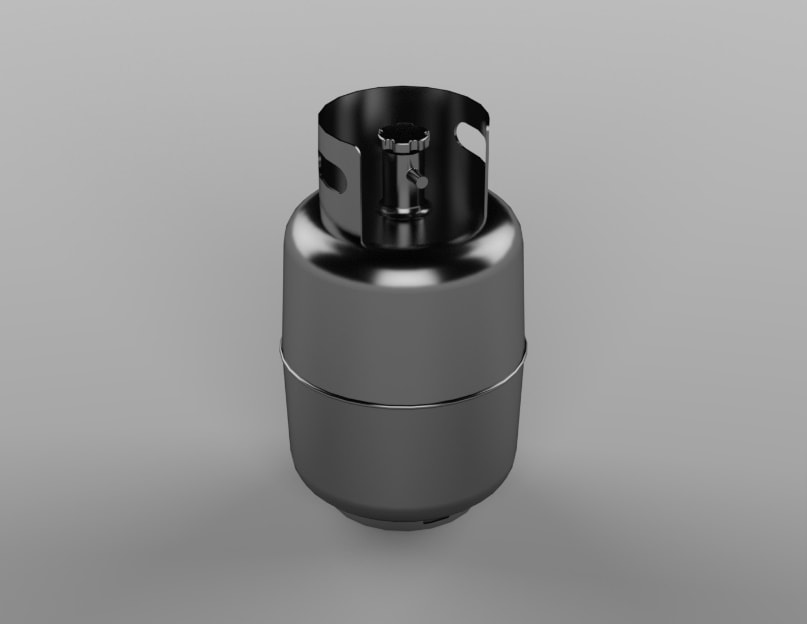

SOLIDWORKS Visualize Professional Brightness Post Processing Filter


Tanks very much for reading.
