Creating Simple 3D Models with DraftSight

In my last blog — Using Sketched Contours to Create 3D Extrusion in DraftSight — I demonstrated a method for creating a closed contour with a polyline or with sketch entities and the Weld command.
Then using the Extrude command to create a solid body. This method may be used with any version of DraftSight.

In an earlier blog — Introduction to Basic 3D Shapes in DraftSight — I demonstrated the methods for creating the basic 3D shapes using DraftSight Premium or DraftSight Enterprise Plus.

For this demonstration I will be using the basic 3D shapes from the 3D Modeling Workspace to create over-lapping solids, which I will combine or subtract to achieve the desired shape.

Here is a drawing of the part I will be creating:

Diagram Description automatically generated

I will start by setting up the layers to organize my 3D shapes.

Table Description automatically generated with medium confidence

Next I will create a Box, 40mm X 150mm x 10mm with the bottom left corner on the Origin. This will be the Base for the part.

A computer screen capture Description automatically generated with low confidence

I will use the Fillet tool to create 8mm fillets on the corners

Graphical user interface, application, Word Description automatically generated

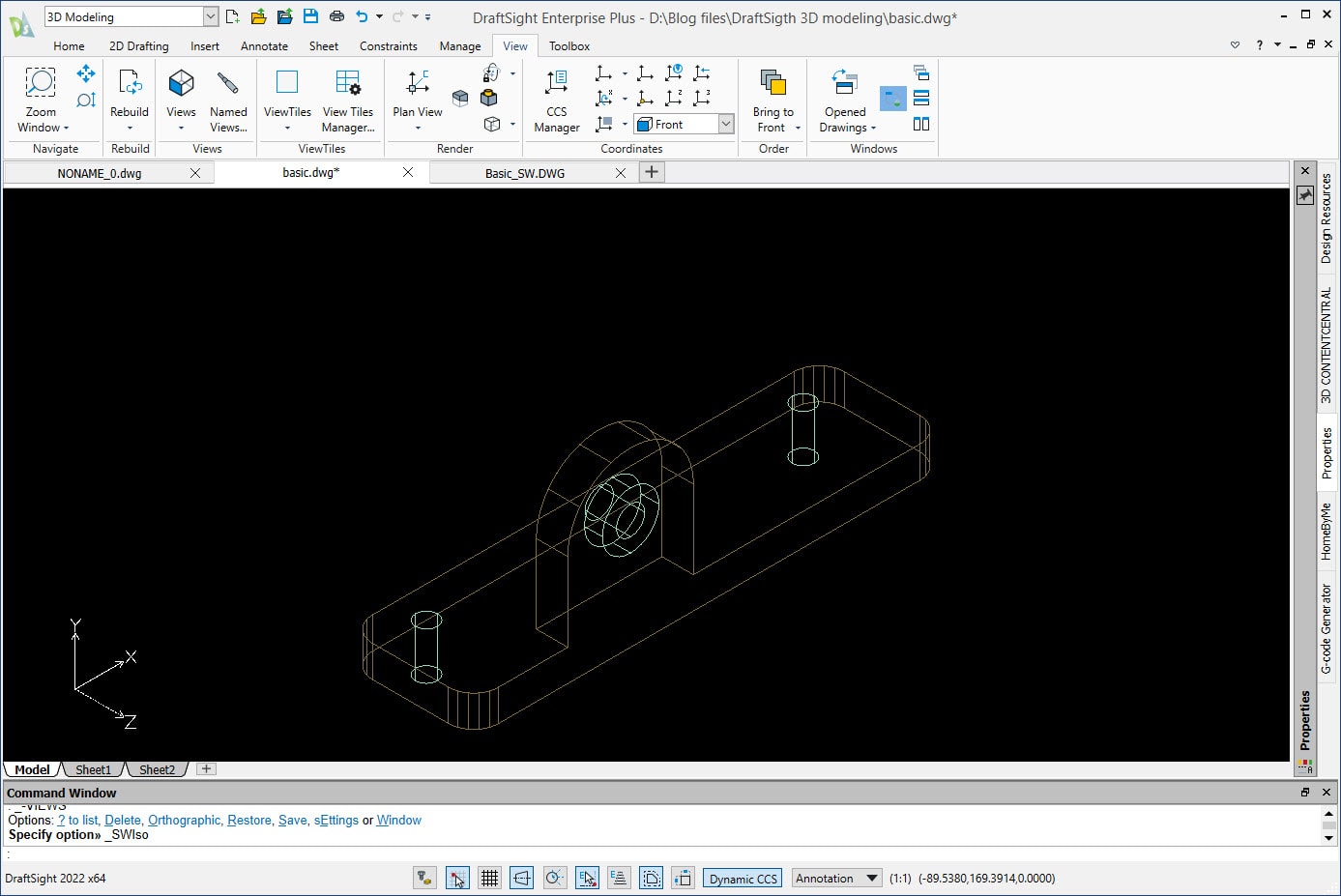

Changing the render to wireframe makes it easier to collect the edges.

A computer screen capture Description automatically generated with medium confidence

Next I will create another box 40mm x 10mm x 30mm located on the front face of the base body at 0, 30, 0. This will be the rectangular portion of the vertical tombstone shape.

Graphical user interface, application, PowerPoint Description automatically generated

Next I will create the last of the positive primitive shapes by adding a cylinder at the midpoint of the edge of the vertical rectangle.

Here are the separate rendered solids (there are three).

A computer screen capture Description automatically generated with low confidence

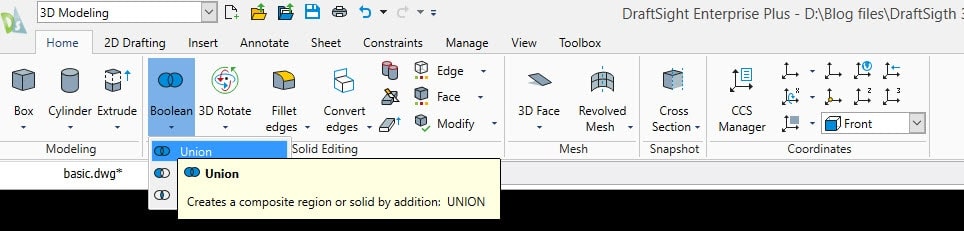

It’s time now to combine the three solids into a single 3D shape. Using the Union command I can do this.

Graphical user interface, application, Word Description automatically generated

Now after selecting the three solids and completing the command, if I hover over the solid it looks like this.

A screenshot of a computer Description automatically generated with low confidence

Next I will move it to the Combined solids layer by activating the layer and moving the body to it.

Now I will begin to create the primitive solids used for the cuts. To start I will activate the layer for the primitive negative bodies and create two cylinders offset from the corners by 15mm from the outside edge and 10mm from the top edge of the base.

A picture containing text, screenshot, electronics, display Description automatically generated

Next I will need to create two cylinders at the center of the vertical boss, one 18mm Dia X 5.68mm deep and one 9mm Dia X 10mm deep.

Graphical user interface, application Description automatically generated

Next I will create a Box 40mm X 3mm X 40mm for the undercut and add 8mm fillets.

Graphical user interface, application Description automatically generated

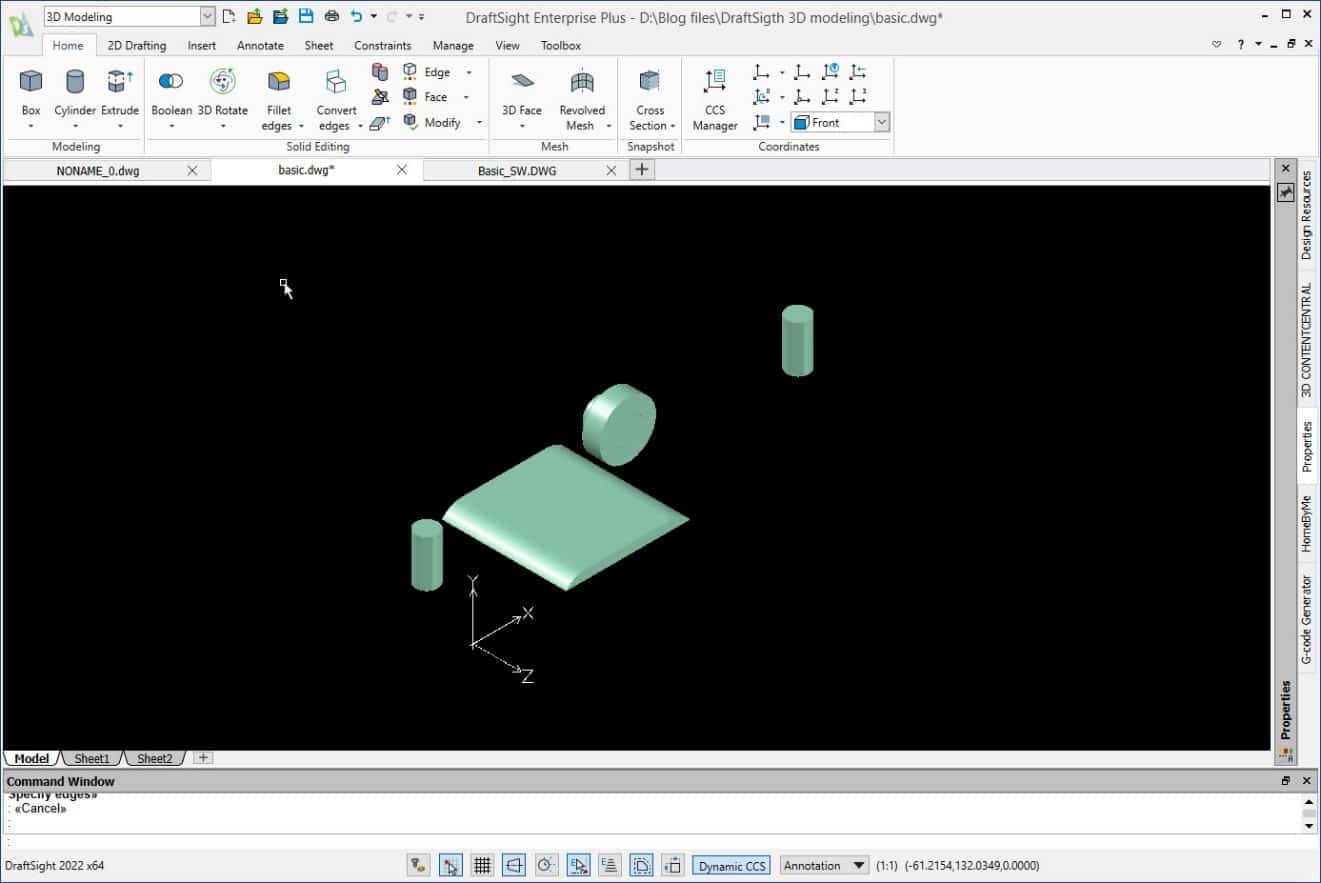

This is what all of the bodies that will be subtracted from the primary body look like.

A screenshot of a computer Description automatically generated with medium confidence

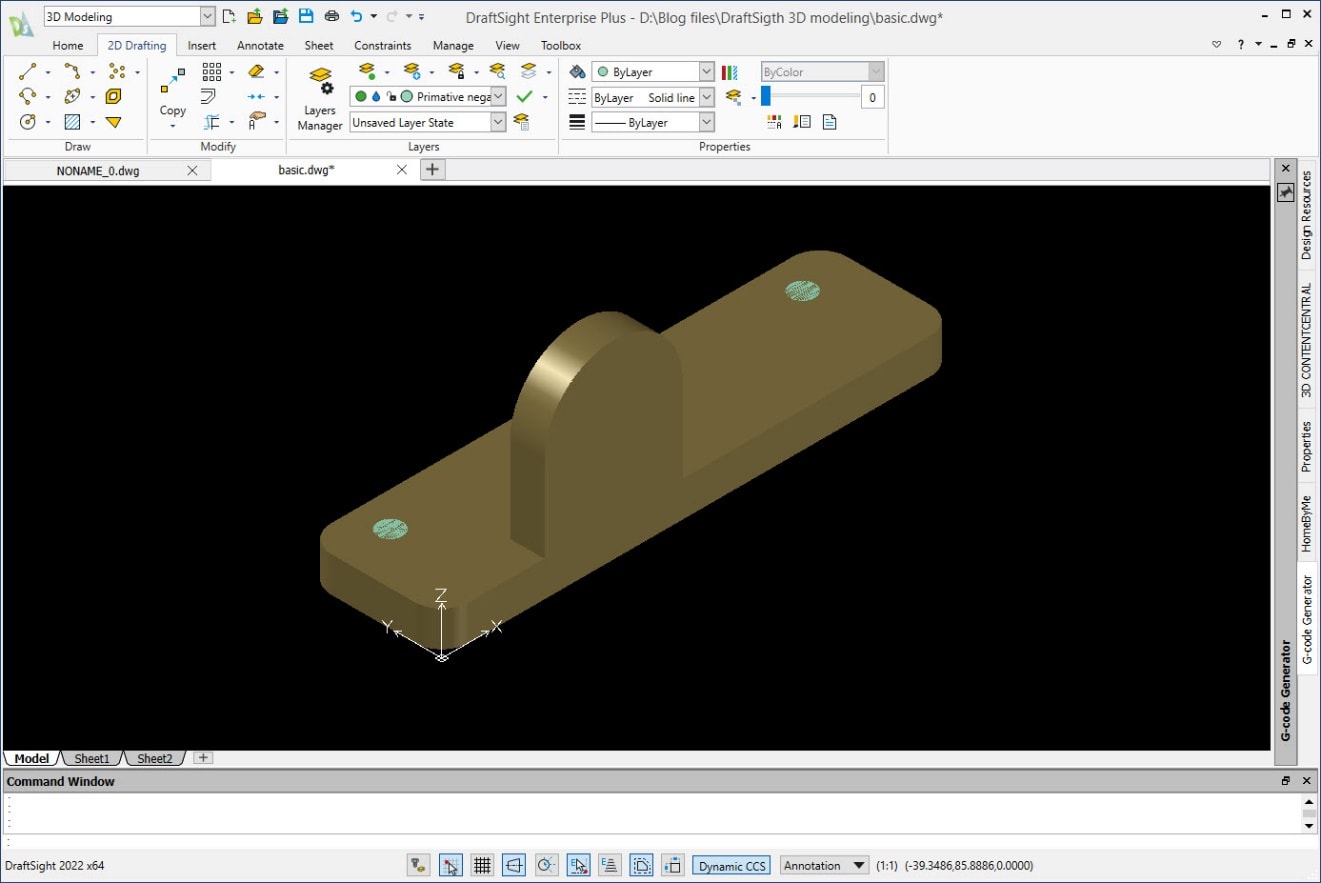

For the last step I will use the Subtract command to remove the primitive solids used for the cuts from the primary solid. This will leave me with the completed body.

A picture containing text, screenshot, electronics, display Description automatically generated

Stay tuned for more DraftSight design and modeling blogs at CATI.com

Also please visit our blog for our other blog articles pertaining to DraftSight:

DraftSight for the AutoCAD User – Laura Nickerson

Master Layers in DraftSight with Layer States Manager – Dennis Barnes

Collaborative Designer for DraftSight Enhancements – Todd Myers

DraftSight Electrical Symbol Library Free Download – Judy Marlo

Inserting Blocks in DraftSight is SO Easy. Read on to Learn How! – Judy Marlo

Using Image Tracer in DraftSight – Dennis Barnes

DraftSight Network License Timeout – Kris Dubuque

Logo, icon Description automatically generated

Dennis Barnes
Sr. Application Engineer
Computer Aided Technology
