Maximizing SOLIDWORKS Performance (MSWP-12-#3)
SOLIDWORKS options set to optimal
SOLIDWORKS, like any other advanced software application has configuration options to allow users to tailor the environment and the functionality to their needs. These options can be adjusted to provide maximum performance. There are more than 20 specific SOLIDWORKS System Options that were adjusted for our testing.

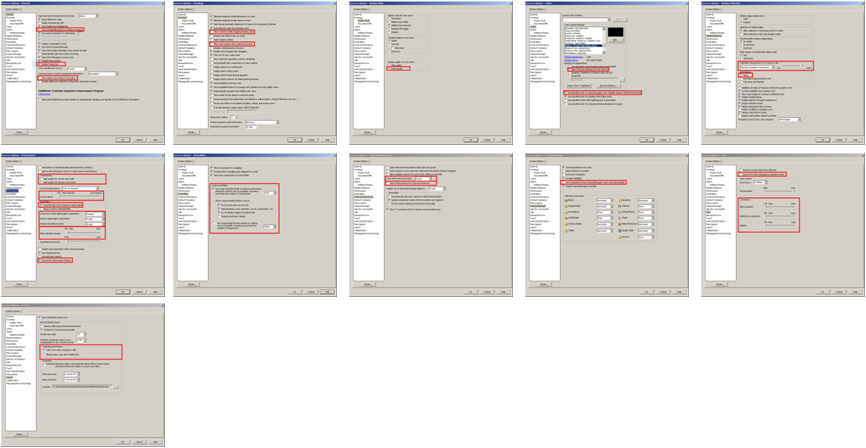

For a listing of all the settings please download the attached Word Doc that has images of all the SOLIDWORKS settings highlighted that we changed from the SOLIDWORKS default settings.
If you remember from our first article; our test baseline had a runtime of 5:01:35 and we measured time for the areas of Opens, Rotations, Modeling, Rebuilds, Switching Sheets, Saves and Closes.
After we changed our SOLIDWORKS Options for best performance our test ran in 4:34:07, this had a noticeable effect in the areas of Opens, Rotations, Modeling and Switching Sheets.
These simple changes gained us a savings of 0:27:28 or 9.1%.
Some of these options we have set to Prompt. This allows the user to maintain control at the time SOLIDWORKS executes one of these commands. When prompted by SOLIDWORKS you have the option to dismiss the dialog box. If you choose to dismiss the message one of two things will happen:
The setting in the SW Options will change to be Always, or Never depending on the action taken.

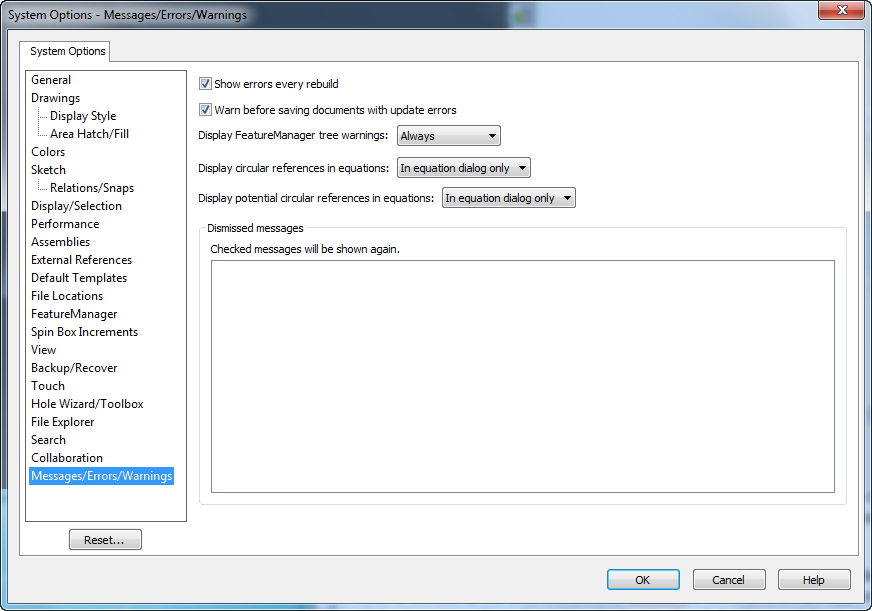

The message will be moved to the Messages/Errors/Warning section of the System Options.
Either of these are bad because now SOLIDWORKS is making a decision for you that can potentially hurt your performance, make changes to how your files are loaded, or give you results that you do not expect when performing different commands.
