SOLIDWORKS 2020 What’s New – Converting Between Baseline and Chain Dimensions
In SOLIDWORKS 2020, you can easily modify Baseline Dimensions into Chain Dimensions or vice versa.

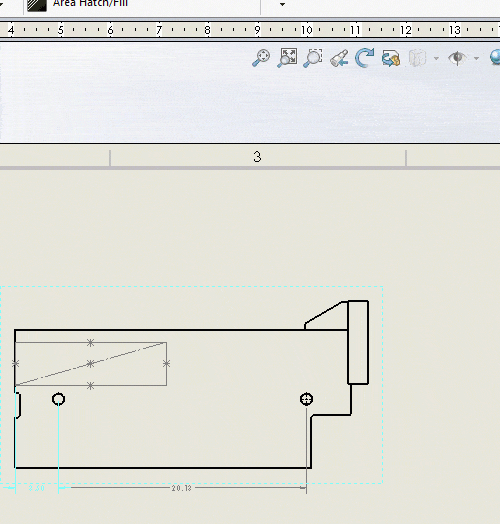

To convert a chain dimension to a baseline dimension:
- Right-click any dimension in the set and click Convert to Base.

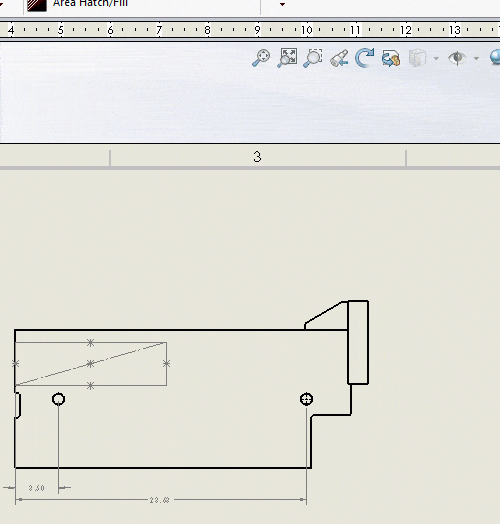

- To convert a baseline dimension to a chain dimension, right-click any dimension in the set and click Convert to Chain.
I hope this part of the What’s New series gives you a better understanding of the new features and functions of SOLIDWORKS 2020. Please check back to the CATI Blog as the CATI Application Engineers will continue to break down many of the new items in SOLIDWORKS 2020. All these articles will be stored in the category of “SOLIDWORKS What’s New.”
