Bringing flat files into SOLIDWORKS to create Models: Drawings and DXF Files

In the current state of CAD affairs, everyone is either using or has heard of 3D CAD. But for users who have been using a 2D system for many years and have an exorbitant amount of data, making the switch isn’t always as easy as deciding to.

Inside of SOLIDWORKS, there are a multitude of tools to help you take and convert your old 2D drawings, and begin to create 3D parametric models with them. In this blog, I’m going to take you through those steps to ensure none of your data gets left behind in this smooth and easy process.

Step 1: Pre-select a Plane or Face to import your DXF or DWG onto.

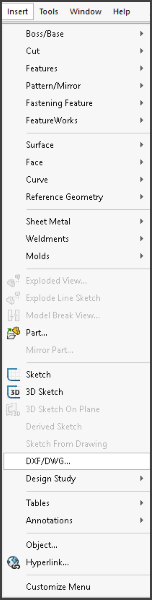

Step 2: Under “Import” on your toolbar, select DXF / DWG and choose the file you want to import.

Step 3: Ensure “2D sketch” is selected, and click “next.”

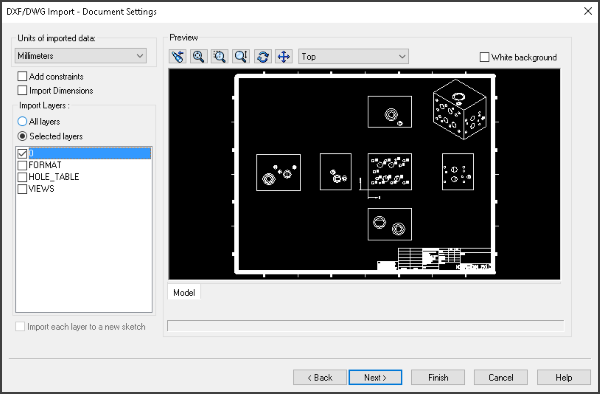

Step 4: Toggle off layers that are not required and to save yourself time down the road. Select “Add constraints” and if available “Import Dimensions.”

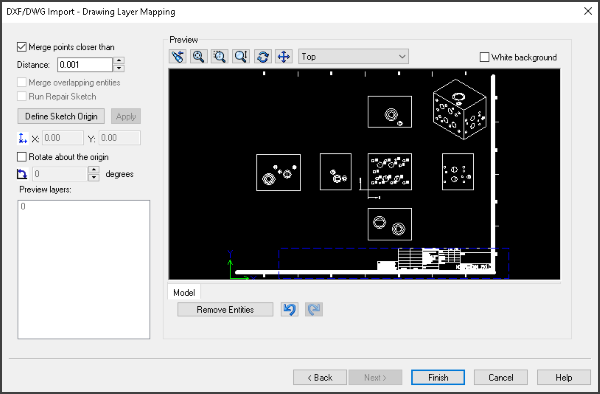

Step 5: Select and remove sketch entities you don’t want included, and click “Finish.” (You can also remove them later once imported into SOLIDWORKS)


Step 6: Do any additional clean up, and begin by selecting sketch entities and assigning them to the various views they will reside.

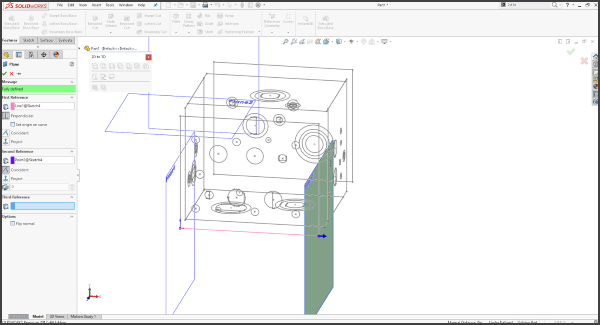

Step 7: To ensure that everything is placed where it needs to go, some reference planes will need to be created. The best way to create the reference planes, will be setting up one view first and then creating point and line reference planes off of it.


And for each sketch/view that is in the model, you will want to use the “Edit Sketch Plane” and update it to the new one.


Step 8: Now that all the sketches reside on the planes they require, we can begin to align them with one another using either “Align sketch” or “Move sketch.”

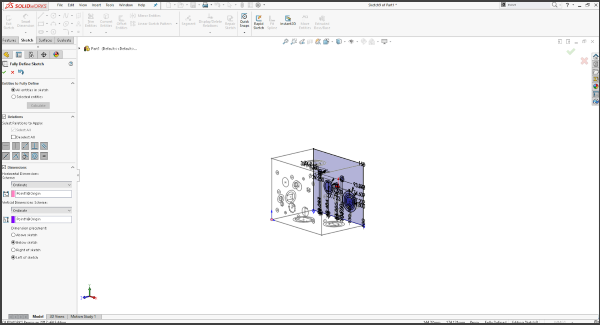

Step 9: Once everything is fully lined up, you can begin to go into sketches and dimension items or use the “Define Sketch” command to quickly get items ready for extrusion.



After you are done creating these new models, saving your old DXF / DWG’s in your vault is a good way to ensure that your legacy data will still be protected in case of any longstanding customers looking for an older version.
